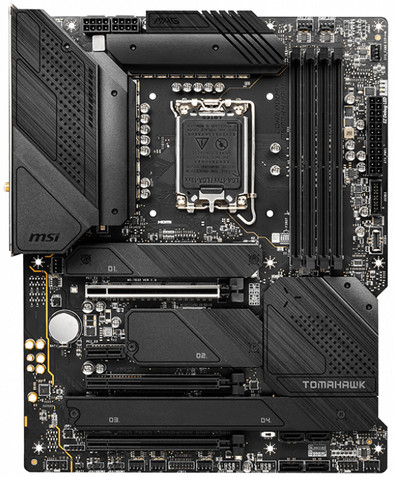

MSI MAG Z690 TOMAHAWK WiFi DDR4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th and 13th generation Intel processors, with a 1700 socket.
Start with a new generation in terms of gaming with the MSI MAG Z690 TOMAHWAK WIF DDR4. This ATX motherboard has an LGA1700 socket and Z690 chipset, so it's made for use with 12th and 13th generation Intel processors. This motherboard has room for up to 128GB RAM, spread over 4 DDR4 slots. Are you planning on using this setup for a long time? Enjoy the PCIe 5.0 support, which you can find in the PCIe x16 slots and in the M.2 slots. This makes the PC very future-proof and it's easy to add a PCIe 5.0 SSD if you want more storage, Starting to get too hot under the feet? No worries, the I/O Shield is made out of reinforced aluminum and the motherboard has multiple heatsinks for a fast disposal of hot air. Tis way, your components remain properly cooled and you keep your focus on your game. For internet, you have a 2.5Gbit Ethernet port for a super fast wired connection. If you don't want wired internet, you can use the built-in WiFi 6E of the motherboard, with a speed up to 2.4Gbps. In addition, this motherboard provides various ports for a fast connection between your computer and accessories. The shield has 1 USB-C port and multiple USB-A 3.2 ports. Enough choice, if you want to connect a lot of accessories.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 918240 | |
Manufacturer code | 7D32-001 | |
Brand | MSI | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
Memory type | DDR4 | |
Maximum memory speed | 5333 Hz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 3 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Nubmber of M.2 connectors | 4 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 3 |
Headphone jack | ||
Microphone connector | ||
Number of microphone connectors | 3 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 6 |
Number of 4-pin CPU water cooling fan headers | 1 |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 4 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 7 |
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
