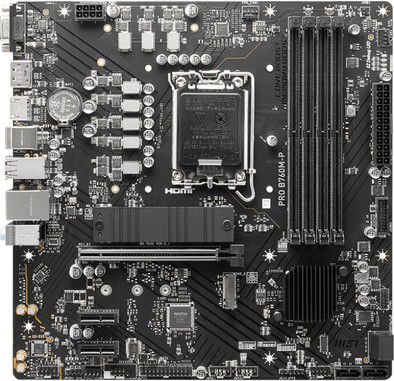

MSI PRO B760M-P
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Product number | 949706 | |
|---|---|---|
Manufacturer code | 7E02-009R | |
Brand | MSI | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Suitable casings | Full Tower, Mid Tower, Mini Tower | |
Form factor (motherboards) | MicroATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel B760 | |
Socket (CPU) | Intel LGA 1700 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 6800 MHz | |
Maximum internal memory | 256 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 2 | |
|---|---|---|
Version PCIe x1 slots | PCIe 4.0 | |
PCI Express x16 slots | 1 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 2 | |
Number of cooled M.2 SSD slots | 1 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 1 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | ||
|---|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 | |
HDMI connector | ||
Number of Female HDMI type A 1.4 ports | 1 | |
Thunderbolt connector | ||
DVI connector | ||
VGA connector | ||
Number of female standard VGA ports | 1 |
USB-C ports back panel | ||
|---|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 | |
USB-A ports back panel | ||
Number of USB-A 2.0 (480Mbps) ports back panel | 4 | |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 1 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 1Gb/s Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC897 |
Fan headers | ||
|---|---|---|
Number of 4-pin CPU fan headers | 1 | |
Number of 4-pin system fan headers | 2 | |
Type of power connector for motherboard | 24-pin ATX connector | |
RGB headers | ||
Number of RGB headers | 1 | |
USB headers on the motherboard | ||
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 | |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 0 | |
|---|---|---|
BIOS flash button on the motherboard | ||
Clear CMOS button on the motherboard | ||
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
Socket (CPU) | Intel LGA 1700 | |
|---|---|---|
Motherboard chipset | Intel B760 | |
Form factor (motherboards) | MicroATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 2 | |
PCI Express x16 slots | 1 | |
Built-in WiFi | ||
Support for overclocking |
According to our motherboard expert
Thanks to the LGA1700 socket, you can install 12th and 13th generation Intel Core processors.
You can insert an M.2 SSD for storage space up to 3 times faster than a SATA SSD.
With the 5 USB ports, you can connect all your gaming accessories.
The motherboard doesn't have WiFi to wirelessly connect your computer to the internet.
Upgrade your gaming PC with the MSI PRO B760M-P motherboard. This motherboard has an Intel B760 chipset with an LGA1700 CPU socket. This makes the PRO B760M-P suitable for 12th and 13th generation processors. You can overclock with this motherboard. The M.2 Shield Frozr protects the 2 M.2 SSDs. The chipset heatsink ensures that you're not bothered by noise during gaming. That's great when you're in the middle of an intense gaming marathon. There are 4 DIMM slots in the motherboard with a total of 192GB RAM. You can save all your game files and other large files here. The PRO B760M-P has a USB-C port and 5 USB-A ports on the back. That's useful so you can connect your gaming accessories, for example.
