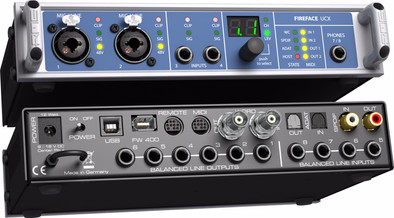

RME Fireface UCX
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our audio interface expert
Are you looking for a high quality audio interface with low latency and many connections? Then the RME Fireface UCX is for you. The UCX has 18 audio inputs and outputs, 8 of which are analog inputs and outputs. The interface also has two combined XLR / jack connections on board, so that you implement high-quality microphone recordings in your productions. If you do not have enough connections on the 8 analog inputs and outputs, you can extend the interface via the SPDIF and ADAT connections. Through this digital connection you connect mixers and external converters for additional input channels. With the supplied TotalMix software you choose how you route the import and export channels. You do not have to change cables every time, for example, if you want to use an external effect.
Included audio software | RME TotalMix | |
|---|---|---|
Sample frequencies | 192 kHZ | |
Audio bit depth | 24 bps | |
MIDI input | ||
MIDI output |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 745156 | |
|---|---|---|
Manufacturer code | 1000505 | |
Brand | RME | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty |
Sample frequencies | 192 kHZ | |
|---|---|---|
Audio bit depth | 24 bps | |
Frequency response | 80000 Hz | |
Signal-to-noise ratio | 111 dB | |
Phantom power switch | ||
ASIO support | ||
Type of FireWire connection | 400 | |
FireWire | ||
Number of FireWire ports | 1 |
USB port | |
|---|---|
USB function | Data transfer |
USB version | USB 2.0, USB 3.0 |
Number of USB ports | 1 |
Headphone jack | ||
|---|---|---|
Number of headphone jacks | 1 | |
Type of headphone connection | [6.3mm jack] | |
Number of 6.3mm outputs | 8 | |
Number of 6.3mm inputs | 8 | |
Microphone connector | ||
Number of microphone connectors | 2 | |
Number of digital optical outputs | 1 | |
Digital optical connector | ||
Number of digital optical inputs | 1 | |
Type of digital optical connection | Standard TOSLINK | |
Digital coaxial connector | ||
XLR line connector | ||
Number of XLR inputs | 2 | |
Combined XLR jack connection | ||
Neutrik XLR connector | ||
RCA connector |
MIDI input | ||
|---|---|---|
MIDI output |
Audio software included | ||
|---|---|---|
Included audio software | RME TotalMix |
Power source |
|---|
Depth | 16,5 cm |
|---|---|
Material | Metal |
Height | 4,4 cm |
Width | 26,5 cm |
