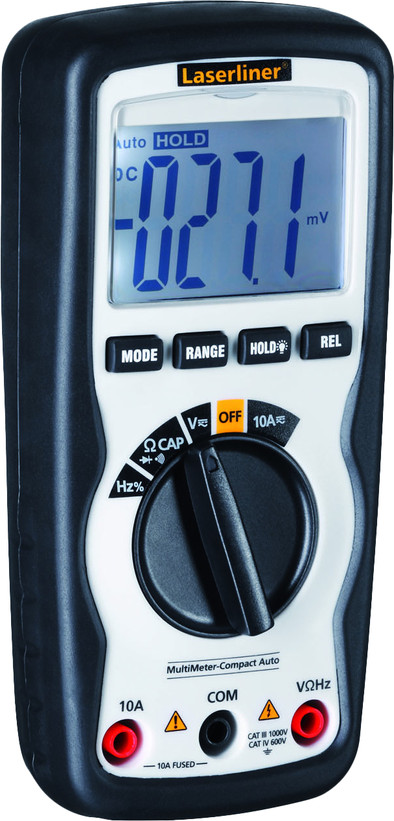

Laserliner MultiMeter-Compact


Key specs

Measurement category
CAT III 1000 V, CAT IV 600 V
Measuring range volt direct current (DC)
0,4 V
Measuring range volts alternating current (AC)
0,4 V

For the professional do-it-yourselfer the Laserliner MultiMeter-Compact is a solution. With this compact, universal multimeter you measure not only voltage, current and resistance, but also capacity, frequency and touch rate. You use the automatic switchover between or the manual pre-selection of the ranges. You enjoy a high measurement resolution for the determination of the different quantities. The integrated, contactless voltage indicator has acoustic, optical and vibrating warnings. For your convenience, the multimeter is equipped with an LC display with backlight and a data hold function, so you can also take measurements at difficult locations. The compact and impact-resistant housing with standing foot completes the MultiMeter-Compact.


Included by default

  • Manual
  • 9 volt battery

Recommended combinations

  • Laserliner MultiMeter-Compact + Batterij(en)

    • Laserliner MultiMeter-Compact
    € 89,98€ 87,98
    10% discount on the accessory
    Delivered tomorrow

Specifications

Product

Product number
800560
Manufacturer code
083.034A
Brand
Laserliner
Warranty
4 years
Warranty type
Carry-in warranty

Physical properties

Width
7 cm
Depth
4,8 cm
Height
15 cm
Weight
255 g
IP certification
IP20
Data display
Digital

Power supply

Power supply type
Battery
Standard battery type
9V

Properties

Measurement category
CAT III 1000 V, CAT IV 600 V
AC (AC) measurement
Yes
Direct current (DC) measurement
Yes
Resistance (Ohm) measurement
Yes
Frequency (Hz) measurement
Yes
Battery test
No
Diode test
Yes
dB test
No
Continuity test
No
Data hold function
Yes
Transistor measurement
Yes
Temperature measurement
No
Measuring range of alternating current (AC)
10 A
Measurement deviation volts alternating current (AC)
2 %
Measuring range volts alternating current (AC)
0,4 V
Measurement deviation ampere direct current (DC)
2,5 %
Acoustic warning signal
Yes
Measuring range volt direct current (DC)
0,4 V
Measurement deviation ampere alternating current (AC)
3 %
Measuring range ampere direct current (DC)
10 A
Measurement deviation volts direct current (DC)
1,5 %
Measurement deviation resistance (Ohm)
2 %
Measurement range frequency (Hz)
10 MHz
Measuring range resistance (Ohm)
4 GO
Continuity test
Yes
Measure electrical capacity
Yes
Width
7 cm
Depth
4,8 cm
Height
15 cm
Weight
255 g
IP certification
IP20
Data display
Digital
Power supply type
Battery
Standard battery type
9V
