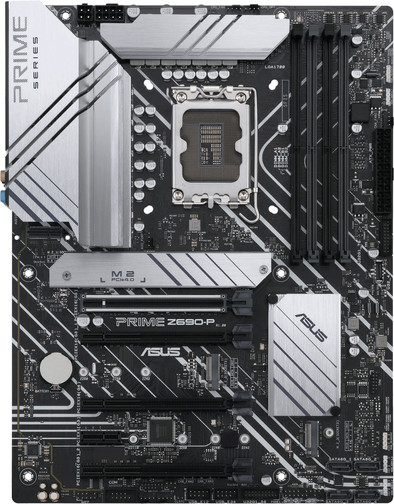

Asus PRIME Z690-P
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors with a 1700 socket.
With the Asus PRIME Z690-A, you choose the next generation for desktop gaming. This ATX motherboard has the LGA1700 socket for 12th generation Intel processors and supports the latest DDR5 RAM modules. That makes this motherboard very future-proof, in combination with PCIe 5.0 slots. You can create a RAM of up to 128GB with the 4 available DDR5 RAM slots, which provides enough power for intense multitasking. In addition, you have 3 M.2 PCIe 4.0 slots available. With these, you can create super fast storage space. For other components, you have a 1 PCIe 5.0 slot on your CPU. The different heatsinks and thermal pads ensure a good dissipation of heat and warm air, so your components remain cool. In terms of your internet connection, you can reach up to 2.5Gbps via the LAN port. That means you're always guaranteed to have a fast internet connection.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 3 | |
PCI Express x16 slots | 4 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 907471 | |
|---|---|---|
Manufacturer code | 90MB19Q0-M0EAY0 | |
Brand | ASUS | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 6400 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 4 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 3 | |
Number of cooled M.2 SSD slots | 1 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
Bluetooth |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek Audio Codec |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 3 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
RGB headers | |
Number of RGB headers | 5 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
