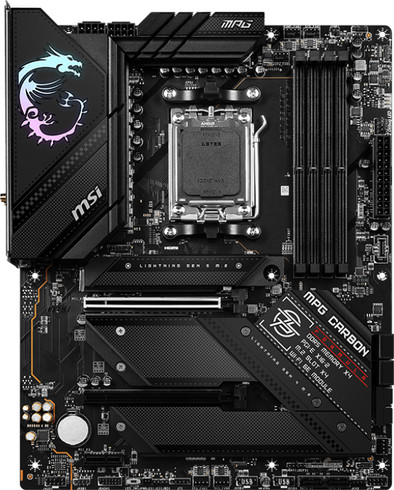

MSI MPG B650 CARBON WiFi
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note:this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket.
Prepare your gaming desktop for the next step with the MSI MPG B650 CARBON WIFI. This ATX motherboard has the AM5 socket and B650E chipset, specifically for use with the AMD Ryzen 7000 processors. You can place up to 128GB DDR5 RAM in the motherboard, with room for 4 modules. This way, you can easily create a lightning-fast RAM that's also future-proof. For your storage, you have room for 4 M.2 SSDs, with support up to PCIe 5.0. This means you can enjoy super fast storage, but also have additional future-proofing. The thermal design of this motherboard has been specially developed to quickly release the hot air and heat. Examples are thermic pads, extra heatsinks, and a design that is suitable for a water pump. This way, your components and your head can remain cool while you game. Having trouble choosing between wireless and wired internet? Don't worry, both options are powerful enough for a stable internet connection. For example, the 802.11ax WiFi 6E module offers a very strong wireless connection and you can create a super-fast wired connection with the 2.5Gbit Ethernet port. In terms of connection, you have enough options with the HDMI 2.1 port, DisplayPort 1.4 port and various USB 3.2 Gen 2x2 ports, for a fast connection between your computer and accessories.
Socket (CPU) | AM5 (7th gen AMD) | |
|---|---|---|
Motherboard chipset | AMD B650 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 917385 | |
|---|---|---|
Manufacturer code | B650 CARBON WIFI | |
Brand | MSI | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | AMD | |
|---|---|---|
Motherboard chipset | AMD B650 | |
Socket (CPU) | AM5 (7th gen AMD) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 4800 MHz | |
Maximum memory speed | 6600 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 4.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 4 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AX (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 7 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 5 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 4 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 7 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Zones separately lit |
