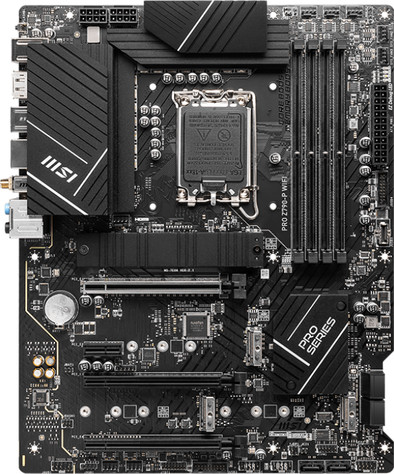

MSI PRO Z790-P WIFI
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors or newer, with a 1700 socket.
Build a powerful desktop build with the MSI PRO Z790-P WIFI. This ATX Z790 chipset motherboard is compatible with Intel LGA1700 socket processors of the 12th, 13th, and 14th generation. With space for 192GB RAM with a speed of around 7000MHz, you can create a powerful and fast RAM. Games, files, and large programs run smoothly and without slowdowns. You also have space for 4 M.2 SSDs for super fast storage space. This motherboard has extra long heatsinks and thermal pads that redistribute heat away well. That way, your components are cooled well and you can focus on your game. Struggling to decide whether you want wires or wireless internet? Via the WiFi 6E module or 2.5Gbps Ethernet port, both options provide a fast and stable internet connection. This motherboard also has extra sturdy solder points to support more demanding components, like a large video card.
Socket (CPU) | Intel LGA 1700 | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 934471 | |
|---|---|---|
Manufacturer code | 911-7E01-013 | |
Brand | MSI | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Socket (CPU) | Intel LGA 1700 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory speed | 4800 MHz | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 1 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 2 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless AXE (WiFi 6E) | |
Bluetooth | ||
Bluetooth version | 5.3 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek ALC897 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin system fan headers | 6 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 3 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 2 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting |
|---|
