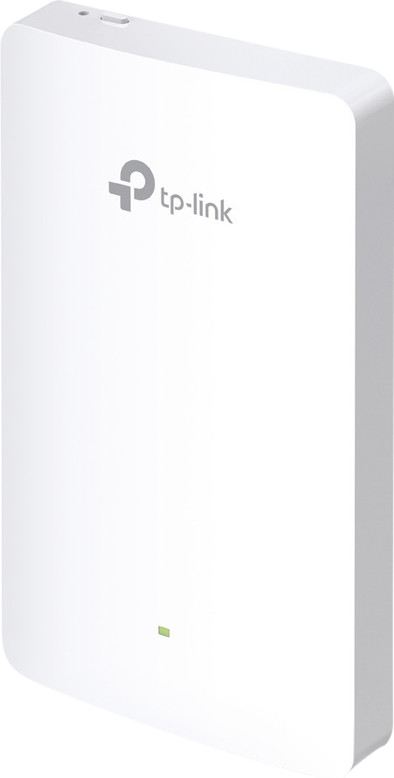

TP-Link Omada EAP225-Wall
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our access point expert
The TP link Omada EAP225-Wall is an Omada wireless MU-MIMO access point. That the access point is compatible with Omada also means that you control the access point via the Omada app. To keep work and private life separate, you can easily create a guest network. An extra power cable is not necessary. The access point supports Power over Ethernet. In addition, it has 3 Ethernet ports for your IP telephone or IP cameras, for example.
Note: This access point only works with Power over Ethernet. For this you need a PoE adapter or suitable switch
Number of access points | 1 | |
|---|---|---|
Frequency bands | Dual-band | |
Ethernet speed | Fast Ethernet (100Mbps) | |
PoE support | ||
5GHz band speed | 867 Mbit/s | |
Seamless roaming |
5 stars
11
4 stars
9
3 stars
1
2 stars
0
1 star
0
Super easy to add to the Omada controller, immediately afterwards operational and further set up from Omada. Due to the extra LAN ports you can also easily connect a client wired locally, so it is also a kind of switch, even with PoE pass-through. Unfortunately, it is really an "in-wall" AP, a small plastic foot as an extra would have been nice for when you do not (yet) have a hole in the wall where a UTP cable comes out.
Pieter
31 July 2021
Automatically translated from Dutch
A very good product, just a pity that the ethernet port where I connect it to your network can only handle 100Mbps and not 1000Mbps so given 5Ghs speed of 867Mbps you don't come close to the fastest I could get is 95Mbps MAX
Nicolai Van der Storm
4 October 2019
Automatically translated from Dutch
Excellent access point with also 3 wired connections
Peter van Zaalen
27 December 2019
Automatically translated from Dutch
Product number | 820042 | |
|---|---|---|
Manufacturer code | EAP225-Wall | |
Brand | TP-Link | |
Warranty | Lifetime | |
Processing of your defect | Via Coolblue |
Speed class | Basic | |
|---|---|---|
Number of access points | 1 | |
Quality of Service (QoS) | ||
Suitable for IPv6 | ||
Guest network | ||
Bridge option | ||
Repeater function | ||
IGMP Snooping | ||
Beamforming | ||
Seamless roaming | ||
Can be expanded with extra stations | ||
On/off switch | ||
Mounting possible |
WLAN security | 802.1X, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK | |
|---|---|---|
Number of WiFi antennas | 2 | |
Frequency bands | Dual-band | |
WiFi speed | AC1200 | |
5GHz band speed | 867 Mbit/s | |
2.4GHz band speed | 300 Mbit/s | |
External antennas | ||
Signal transmission | Omnidirectional | |
Antenna connection type | Standard antenna | |
Replaceable WLAN antennas | ||
MAC address filter | ||
MIMO | ||
MU-MIMMO |
Ethernet speed | Fast Ethernet (100Mbps) | |
|---|---|---|
Number of Ethernet ports | 4 | |
WAN ports | 3 | |
PoE support | ||
Type of PoE | 802.3af (PoE) | |
Number of PoE ports | 1 |
Material | Plastic |
|---|---|
Height | 14,3 cm |
Width | 8,6 cm |
Depth | 1,97 cm |
Weight | 0,3 kg |
Color | White |
