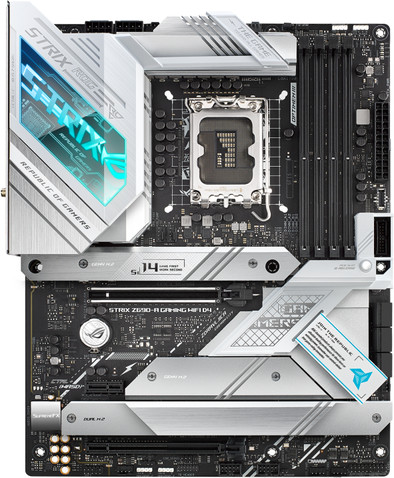

Asus ROG STRIX Z690-A GAMING WIFI D4
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors with a 1700 socket.
Ready your gaming desktop for the next step with the Asus ROG STRIX Z690-A GAMING WIFI D4. This ATX motherboard has the LGA1700 socket and Z690 chipset for use with a 12th generation Intel processor. You have room for 4 DDR4 memory modules, with a maximum capacity of 128GB. This way, you can easily create a fast and powerful RAM. You have 4 M.2 SSD slots with maximum PCIe 4.0 support for storage. This way, your files load very fast and you can get started with your games right away. For other components, you can choose from 1 PCIe 5.0 x16 and 1 PCIe 3.0 x16 slots. Thanks to the many heatsinks on the motherboard, the warm air and heat are actively dissipated. This way, your components are cooled well and the lifespan is guaranteed. In addition to the HDMI 2.1 and DisplayPort 1.4 ports, you have 10 USB ports for connecting accessories. You have a 2.5Gbit Ethernet port for internet, so you'll have a very fast wired connection. Don't want wired internet? Use the built-in WiFi 6E of the motherboard, with speeds up to 2.4Gbps.
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 2 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 907468 | |
|---|---|---|
Manufacturer code | 90MB18K0-M0EAY0 | |
Brand | ASUS | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z690 | |
Socket (CPU) | 1700 (12th gen Intel), 1700 (13th gen Intel) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR4 | |
Memory speed | 2133 MHz | |
Maximum memory speed | 5333 MHz | |
Maximum internal memory | 128 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 2 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 4 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 6 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless AX (WiFi 6E) | |
Bluetooth | ||
Bluetooth version | 5.2 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 2 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Headphone jack | ||
|---|---|---|
Microphone connector | ||
Number of microphone connectors | 1 | |
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | ALC4080 |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 5 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Color lighting | RGB | |
Zones separately lit | ||
Lighting connectable with peripherals | ||
Zone lighting | Logo |
