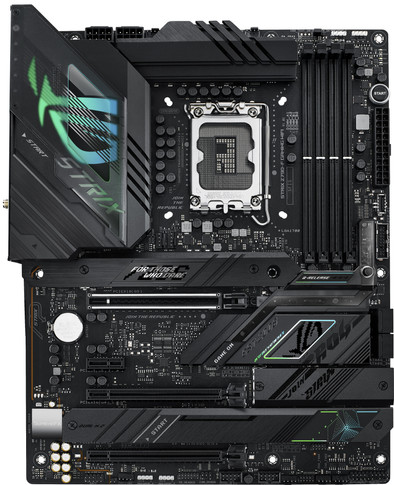

ASUS ROG Strix Z790-F GAMING WiFi
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our motherboard expert
Note: this motherboard only works with 12th generation Intel processors or newer, with a 1700 socket. This motherboard also only works with DDR4 RAM.
Create a powerful and future-proof gaming PC with the ASUS ROG Strix Z790-F GAMING WiFi motherboard. This ATX motherboard has the LGA1700 socket and Z790 chipset, for use with the 12th, 13th, and 14th generation Intel processors. You can place up to 192GB DDR5 RAM on this motherboard via the 4 DIMM slots. Want fast storage in addition to large storage space? With the 3 M.2 slots, you can easily place multiple NVMe SSDs on the motherboard. One of these M.2 SSD slots is equipped with the PCIe 5.0 protocol for extra fast and future-proof power. Thanks to the WiFi 6E module and 2.5Gbps Ethernet port, this motherboard provides a powerful and stable wired or wireless internet connection. This motherboard also has 12 USB ports on the back, of which 2 USB-C ports. This allows you to connect all your gaming accessories. Want to monitor the performance? This motherboard offers various software programs to cool and optimize your audio, for example. As a result, you can adjust all settings to your own liking. As a true gaming motherboard, this ASUS also has RGB lighting that you set yourself through the ASUS software
Socket (CPU) | Intel LGA 1700 | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 916768 | |
|---|---|---|
Manufacturer code | 90MB1CP0-M0EAY0 | |
Brand | ASUS | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
Compatible with Windows version | Windows 10, Windows 11 | |
|---|---|---|
Revision | 1.0 | |
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset brand | Intel | |
|---|---|---|
Motherboard chipset | Intel Z790 | |
Socket (CPU) | Intel LGA 1700 | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Total number of RAM slots | 4 | |
|---|---|---|
Memory type | DDR5 | |
Memory speed | 7800 MHz | |
Maximum memory speed | 7800 Hz | |
Maximum internal memory | 192 GB | |
Number of memory channels | Dual channel (2) |
PCI Express x1 slots | 1 | |
|---|---|---|
Version PCIe x1 slots | PCIe 3.0 | |
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 2 |
Supported M.2 SSD formats | 22x80mm | |
|---|---|---|
Nubmber of M.2 connectors | 4 | |
Number of cooled M.2 SSD slots | 4 | |
Number of M-key (PCIe 4.0 + SATA III) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 3 | |
Number of SATA connectors | 4 |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless AXE (WiFi 6E) | |
Bluetooth | ||
Bluetooth version | 5.3 |
DisplayPort connector | |
|---|---|
Number of Female Standard DisplayPort 1.4 ports | 1 |
HDMI connector | |
Number of Female HDMI type A 2.1 ports | 1 |
Thunderbolt connector | |
DVI connector | |
VGA connector |
USB-C ports back panel | |
|---|---|
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 |
USB-A ports back panel | |
Number of USB-A 2.0 (480Mbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 4 |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 |
Headphone jack | |
|---|---|
Microphone connector | |
Number of microphone connectors | 1 |
Ethernet port | |
Number of 2.5Gbps Ethernet ports | 1 |
Digital optical connector |
Fan headers | |
|---|---|
Number of 4-pin CPU fan headers | 1 |
Number of 4-pin CPU optional headers | 1 |
Number of 4-pin system fan headers | 5 |
Number of 4-pin CPU water cooling fan headers | 1 |
Type of power connector for motherboard | 24-pin ATX connector |
Type of power connector for CPU | 8+8 pin ATX connector |
RGB headers | |
Number of RGB headers | 4 |
USB headers on the motherboard | |
Number of USB 2.0 (480Mbps) headers on the motherboard | 2 |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
USB-A ports on the motherboard | 0 |
|---|---|
BIOS flash button on the motherboard | |
Clear CMOS button on the motherboard | |
Power button on the motherboard |
RGB lighting | ||
|---|---|---|
Number of colors lighting | Multicolor | |
Zones separately lit |
