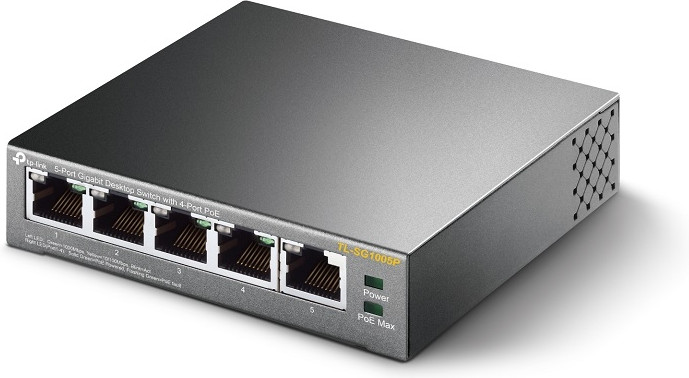

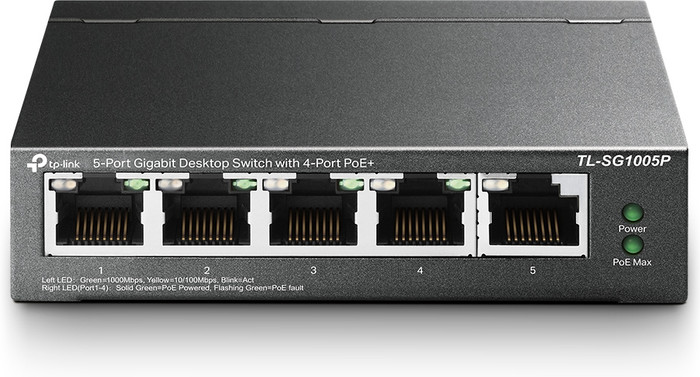

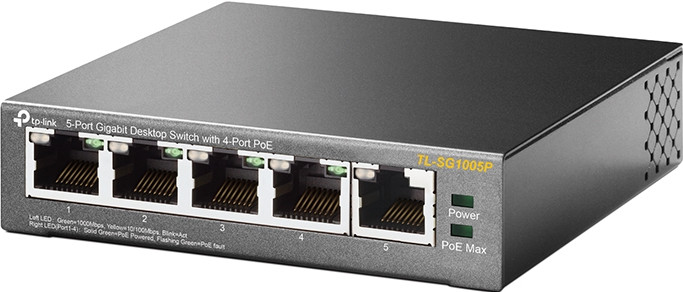

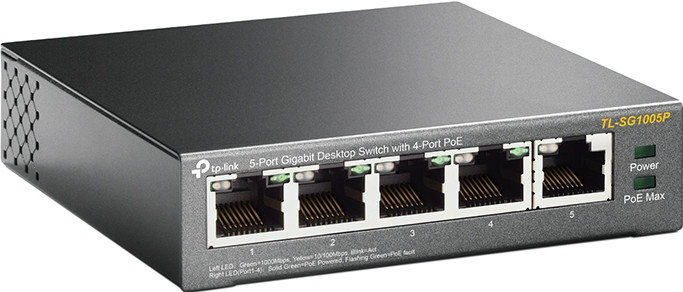

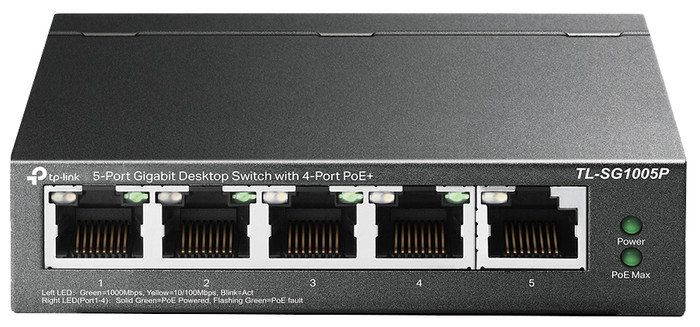

TP-Link TL-SG1005P
Choose your network switch:
5
Highlighted
The WiFi solution for your living situation
We'll help you find a solution for your WiFi problem in 2 steps here.
This is the one
TP-Link TL-SG1005P
Choose your network switch:
5
Current product
Â
Â
Â
41,99
54,-
54,-
60,-
No
No
No
No
PoE
PoE+
PoE
No PoE
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
Gigabit Ethernet (1000Mbps)
2.5Gb Ethernet (2500Mbps)
0
0
0
0
According to our network switch expert
The TP-Link TL-SG1005P is a network switch for home or small office use. The switch has 4 network connections with Power over Ethernet. That means you can supply power to your devices such as IP cameras or access points via this switch. No need for extra sockets. The switch is plug and play, adding extra network ports to your network without you having to do any configuration. Thanks to Quality of Service, you can give priority to important internet traffic. That means streams won't get interrupted when you're downloading big files.
Number of Ethernet ports | 5 | |
|---|---|---|
Managed switch | ||
Ethernet speed | Gigabit Ethernet (1000Mbps) | |
PoE support | ||
Switching capacity | 10 Gbit/s | |
Quality of Service (QoS) | ||
Mounting possible |
5 stars
974
4 stars
487
3 stars
42
2 stars
6
1 star
5
Degelijkheid
Energy consumption
Speed
Installation & user friendliness
Options
I bought this switch because my T-mobile router only has 2 ethernet ports available (other 2/4 for TV for now) Looks solid and is nicely compact. Based on the website I thought I would get the "Easy Smart Switch", when the package arrived it turned out to be an "Unmanaged Pro" variant with the same model number (TL-SG105E) After some communication with Coolblue and the manufacturer, it turns out to be the same product. (other branding only) With me there was no CD (according to the description website CB) but you don't need that either. Any new(er) firmware can be found on the TP-Link website: https://www.tp-link.com/nl/support/download/tl-sg105e/ !Make sure you choose the correct hardware version! (it's on the sticker on the bottom of the switch) For me it was V4. (So don't automatically choose the last one!)
To configure the switch, you will have to make a direct (1on1) network connection with a PC/laptop. Default IP of the switch is then: 192.168.0.1 (default login: admin, admin) Put your PC (temporarily) in the same IP range, e.g. 192.168.0.2 (Network, change adapter options, Ethernet, Properties, Internet Protocol version 4 (TCP/IPv4), choose a manual IP)
if you place the switch directly in your network, it works like a switch, so you don't just get to the web interface. Network cables in and go.
rubber (adhesive) feet included (I have not used) I hung the switch on 1 of the 2 "Screw eyes" on the back.
All in all I am very satisfied with it.
F. Boersma
8 April 2020
Automatically translated from Dutch
David Serrien
3 August 2014
Automatically translated from Dutch
Many options for an entry model switch. POE, Manageble and Vlan support. You don't find that much on switches in this price range. Comes in a sturdy housing.
Frank Pietersma
17 August 2018
Automatically translated from Dutch
Product number | 800482 | |
|---|---|---|
Manufacturer code | TL-SG1005P | |
Brand | TP-Link | |
Warranty | Lifetime | |
Processing of your defect | Via Coolblue |
Managed switch | ||
|---|---|---|
Number of Ethernet ports | 5 | |
Ethernet speed | Gigabit Ethernet (1000Mbps) | |
Switching capacity | 10 Gbit/s | |
SFP/GBIC ports | 0 | |
Quality of Service (QoS) | ||
LACP Link aggregation | ||
IGMP Snooping | ||
VLAN | ||
Jumbo frame support | ||
Port mirroring | ||
Professional use | ||
Suitable for business use in | Home office |
PoE support | ||
|---|---|---|
Type of PoE | 802.3af (PoE) | |
Total PoE power | 65 W | |
Highest PoE stand | PoE | |
Number of PoE ports | 4 | |
Number of PoE+ ports | 0 | |
Number of PoE++ ports | 0 | |
Maximum PoE power per port | 15,4 W | |
PoE splitter |
Fan present | ||
|---|---|---|
Mounting possible | ||
Suitable for 19-inch rack mount | ||
Weight | 0,8 kg | |
Color | Black | |
Height | 9,9 cm | |
Width | 9,8 cm | |
Depth | 2,5 cm | |
Material | Metal | |
Guided collections test property | 1 switch | 1Gbps Ethernet speed | 0 SFP ports, 1 switch | 4 PoE ports, 1Gbps Ethernet speed | Not suitable for 19-inch rack, 4 PoE ports | 1Gbps Ethernet speed | No SFP ports |
