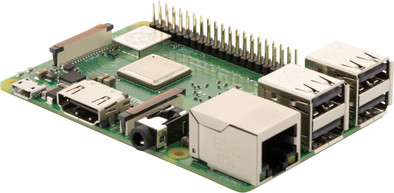

Raspberry Pi 3 Model B+

44,-
Temporarily sold out



Alternatives


Key specs

Processor cores
Quad-Core (4)
Maximum internal memory
1 GB
Memory type
DDR2
Bluetooth
Yes
HDMI connection
Yes

Pros and cons

According to our Single-board computer expert
  • Pros:
    The Raspberry Pi 3 Model B+ has better cooling than its predecessors, so you can leave it on day and night.
  • Pros:
    With a processor speed of 1.4GHz, this single-board computer can be converted into a media player.
  • Pros:
    Because Raspberry Pi makes use of open software, the functions are constantly evolving.
  • Con:
    Installing and using a Raspberry Pi requires some in-depth knowledge on the part of the user.
  • Con:
    The required software and power cord aren't included.
Product Expert Single-board computers

The Raspberry Pi 3 Model B+ is the fastest version of the Raspberry Pi 3. This allows you to build a small media player, game console, or home automation controller. Thanks to the better cooling on this single-board computer, it runs 200MHz faster than its predecessor. That makes the Raspberry Pi 3 Model B+ ideal for use as a very compact media player. The great cooling means you can also leave it on 24 hours a day for all your home automation projects. This microcomputer is equipped with a WiFi connection on the 5GHz band, so you can set up a fast and reliable wireless connection. You'll even be able to stream HD movies. Finally, this DIY computer comes with the energy-efficient Bluetooth version 4.2.


Specifications

Product

Product number
808563
Manufacturer code
2842229
Brand
Raspberry Pi
Warranty
2 years
Warranty type
Carry-in warranty

Processor

Processor brand
Broadcom
Processor code name
Model B+
Processor cores
Quad-Core (4)
Clock speed
1,4 GHz
Turbo speed
1,4 GHz
Cache memory
512 KB

RAM

Internal RAM present
Yes
Internal RAM
1 GB
Expandable memory
No
Number of memory channels
Single channel (1)
Memory type
DDR2

Video card

Type of video card
None

Storage

Memory card included
No

Wireless connections

Bluetooth
Yes
Bluetooth version
4.2
NFC
No
Integrated WiFi
Yes
WiFi standards
Wireless AC, Wireless G, Wireless N

Wired connections

Headphone jack
Yes
Type of headphone connection
3.5mm mini jack
Number of headphone jacks
1
WiFi standards
Wireless AC, Wireless G, Wireless N
NFC
No
Bluetooth
Yes
Integrated WiFi
Yes
Bluetooth version
4.2
Number of female 3.5mm TRS Audio Jack ports
1
Version female micro USB-B (2.0 form factor) port
2.0
Number of female micro USB-B (2.0 form factor) ports
1
Female standard USB-A port version
3.0
Number of female standard USB-A ports
4
Number of HDMI ports
1
Female HDMI Type A port version
1.4
Number of Female HDMI type A 1.4 ports
1
Microphone connection
No
Number of ethernet ports
1
Ethernet speed
Gigabit Ethernet (1000Mbps)

Power source

Minimum required PSU (power supply unit)
12,5 W
Voltage
5 V
Charger adapter included
No

Physical properties

Weight
0,5 kg
Width
85 mm
Depth
17 mm
Height
56 mm
