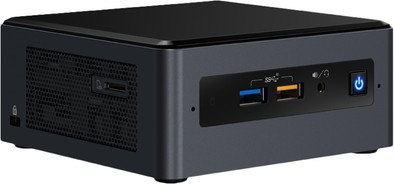

Intel NUC Kit NUC8i5BEH
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our barebone expert
The Intel Bean Canyon is a mini computer that's suitable for use at the office. Thanks to its small size, you can place this small PC on every workplace. If there really is no room left, you can even put it behind a monitor. This way, you have enough workspace left on your desk. Thanks to the Intel Core i5 processor, you can easily perform tasks such as editing PivotTables. On top of that, the Intel Iris Plus graphics allow you to easily play videos in Full HD and 4K. The barebone has room for up to 32GB RAM; you can install both an M.2 and a 2.5-inch SSD in this barebone.
Note: This barebone is missing several key parts, such as RAM, hard drives, and an operating system.
Processor family | Core i5 | |
|---|---|---|
Built-in WiFi | ||
Memory type | DDR4 | |
Maximum internal memory | 32 GB | |
Type of SSD | 2.5-inch SATA | |
Number of HDMI connectors | 1 | |
Bluetooth | ||
Integrated video card |
5 stars
13
4 stars
2
3 stars
1
2 stars
0
1 star
0
This nuc is the last of a series of 4 that I bought as a home test/study environment. Ideal for testing vSphere and/or storage things. I had bought nuc7i5BNH before, and these are also very good, but the nuc8i5 with the quad core CPUs is unbelievably fast. This replaces my desktop pc (quadcore AMD Athlon from 7 years old with 6GB ram :) ), runs windows and esxi as VM. The virtual esx instance is as fast as the nuc7 that run it natively. In short, I'm very happy with it, and even games work very well. In short: a "great bakske" :), especially with full flash storage
Marino Simons
13 January 2019
Automatically translated from Dutch
Bought this Nuc to replace my atx box (was 9 years old) which serves as a streaming device. In addition, browsing the Internet and YouTube. Transferred SSD from old PC, with a little effort, and mounted 16Gb memory bank. Bios configured and after that this little device works like a spear.
Test performed with Handbrake, 11Gb BD file converted to Apple TV compatible 3.21Gb file in 1 hour and 4 minutes. While a stream is turned on.
Nuc addressed his cooling, but did not experience this as an annoying noise, a slight buzzing sound.
All in all, a wolf in sheep's clothing, which you can use for years after adding an SSD (or M.2 SSD) and a memory bank.
look out!! Enable legacy boot otherwise your SSD/m.2 will not be seen as a boot device! Samsung EVO 860 and higher is supported, in addition of course the Intel SSD. Other brands/types may not be able to be controlled properly.
Ricardo van der Vegt
25 July 2019
Automatically translated from Dutch
This is my first NUC because I wanted a small computer on the table. After researching the processor in this nuc, I noticed that it is also used in the Apple Macbook Pro! (and those machines are fast!). Didn't hesitate, so bought it. I am impressed. How can such a small machine be SO fast?! Sometimes I don't even notice whether I'm working on my old desktop or on the Nuc. Are you looking for a small solution but with a lot of computing power.. then this is the ideal computer. Not suitable for heavy Games of course!
Francois Simons
8 March 2019
Automatically translated from Dutch
Product number | 823349 | |
|---|---|---|
Manufacturer code | BOXNUC8i5BEH2 | |
Brand | Intel | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Processor brand | Intel | |
|---|---|---|
Processor family | Core i5 | |
Processor code name | Coffee Lake | |
Processor number | 8259U | |
Processor cores | Quad-Core (4) |
Clock speed | 2,3 GHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 3,8 GHz | |
Cache memory | 6 MB |
Memory type | DDR4 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 32 GB | |
Voltage RAM | 1.35V |
Integrated video card | ||
|---|---|---|
Chipset brand | Intel |
M.2 SSD connector type | M |
|---|
Bluetooth | ||
|---|---|---|
Built-in WiFi | ||
Number of Ethernet ports | 1 |
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 1.4 ports | 1 | |
DisplayPort connector | ||
Thunderbolt connector | ||
Number of Female Thunderbolt 3 (USB-C) ports | 1 |
Headphone jack | ||
|---|---|---|
Number of female 3.5mm TS Audio Jack ports | 1 | |
Microphone connector |
Width | 11,5 cm |
|---|---|
Height | 5,1 cm |
Depth | 11,1 cm |
Weight | 0,5 kg |
Color | Black |
Material | Metal, Plastic |
