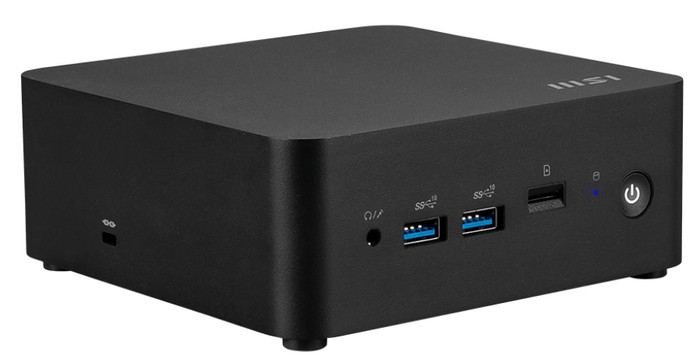

MSI Cubi NUC 1M-014BEU
Never available again
View alternatives in the sidebar
Specifications
Product
Product number | 967386 | |
|---|---|---|
Manufacturer code | Cubi NUC 1M-014BEU | |
Brand | MSI | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
General properties
Product family | Cubi | |
|---|---|---|
Connector included | ||
Compatible with Windows version | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
Processor properties
Processor brand | Intel | |
|---|---|---|
Processor family | Core Ultra 3 | |
Processor code name | Raptor Lake | |
Processor cores | Hexa-Core (6) | |
Threads | 8 |
Processor performances
Clock speed | 1,2 GHz | |
|---|---|---|
Overclockable | ||
Turbo speed | 4,7 GHz | |
Cache memory | 12 MB | |
Number of performance cores | 2 | |
Number of efficiency cores | 4 | |
Integrated graphics | ||
Type of integrated graphics | Intel Iris Xe Graphics |
RAM properties
Memory type | DDR5 | |
|---|---|---|
Total number of RAM slots | 2 | |
Maximum internal memory | 64 GB | |
Maximum memory speed | 5200 MHz |
Video card properties
Integrated video card | ||
|---|---|---|
Chipset brand | Intel | |
GPU chipset number | Intel Iris Xe Graphics |
Storage properties
Nubmber of M.2 connectors | 2 | |
|---|---|---|
M.2 PCIe version | 4.0 |
Network and audio properties
Bluetooth | ||
|---|---|---|
Bluetooth version | 5.3 | |
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Ethernet port | ||
Number of Ethernet ports | 2 | |
Number of 2.5Gbps Ethernet ports | 2 |
Video connections
HDMI connector | ||
|---|---|---|
Number of Female HDMI type A 2.1 ports | 2 | |
DisplayPort connector | ||
Thunderbolt connector |
USB ports on the front
USB-A ports front panel | ||
|---|---|---|
Total amount USB-A ports front panel | 2 | |
USB-C ports front panel |
USB ports on the back
USB-A ports back panel | ||
|---|---|---|
Total number of USB-A ports back panel | 2 | |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 2 | |
USB-C ports back panel | ||
Total number of USB-C ports back panel | 2 |
Audio properties
Headphone jack | ||
|---|---|---|
Number of female 3.5mm TRS Audio Jack ports | 1 | |
Microphone connector | ||
Number of microphone connectors | 1 | |
Type of microphone connection | 3.5mm jack | |
Digital optical connector | ||
Audio processor | Realtek ALC256 | |
Audio channels | 2.1 |
Physical properties
Width | 13 cm | |
|---|---|---|
Height | 5 cm | |
Depth | 13 cm | |
Weight | 0,625 kg | |
Color | Black | |
Material | Aluminum |
