According to our table saw expert

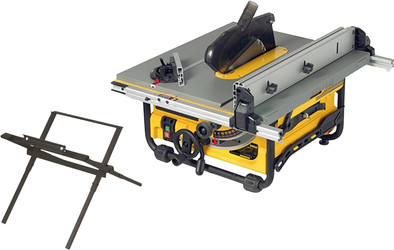

Thanks to its 22-kilogram weight and dimensions, the DeWalt DW745 is easy to take with you to all your jobs. Saw up to 77 millimeters deep at a straight angle and when you tilt the saw head, you can still saw up to 57 millimeters deep. Using this table saw, you can easily work large panels as well, because the cutting width on the right side is a whopping 61 centimeters. Working quickly with this table saw is no problem whatsoever, because it works with 3,800 rotations per minute. Due to its speed, the release of quite a lot of (saw) dust could be a problem. The DeWalt DW745 offers a solution for this as well, however. This table saw has a vacuum adapter for connecting a construction vacuum.
Saw blade diameter | 250 mm | |
|---|---|---|
Power | 1850 W | |
Laser guide | ||
Maximum cutting depth 45° (slant) | 57 mm | |
Maximum cutting depth 90° (straight) | 77 mm | |
Connection for vacuum |
5 stars
40
4 stars
22
3 stars
2
2 stars
0
1 star
0
I wanted to do some small projects with my brand new table saw before writing a review.
This table saw is exactly what I was looking for. Fortunately, after countless comparisons, reviews and YouTube videos, I finally decided to buy this one.
The table saw is small and light, which is very important to me. For someone with little storage space like me, that's a plus. I can easily lift it into the provided rack or take it with me without difficulty (for work on the scouts). Because it is so small and light, it naturally has a smaller worktop than the average table saw. A compromise I had to make.
The worktop is flat and that was very important to me. Most table saws consist of different (extendable) parts that in practice usually do not line up nicely. In my opinion, that makes precision work unnecessarily more difficult. This worktop, on the other hand, consists of 1 piece, which makes it nice and flat and you don't have to worry about that.
Adjusting the parallel guide is particularly easy. When I installed it, I checked once whether the distance with the saw blade was correct and adjusted it. From then on, every cut was perfectly at the desired distance. The guide is also very easy to adjust to the desired length with the rotary knob. If you don't need the parallel guide for a while, it clicks off at 1, 2, 3, handy!
Like almost any table saw, the supplied miter saw is substandard. First of all, there is quite a lot of play on the guide in the rail, but almost every brand seems to suffer from this. On the other hand, the protractor is difficult to read and adjust. In addition, due to the play of the rail, the protractor is not very precise.
I took the riving knife off almost immediately. Unfortunately, this extends above the saw blade, which makes it impossible to cut blind grooves with it.
As the very first project I made a table saw carriage, to make sawing even easier. Making repeated cuts is therefore a real convenience. I would say get inspired by YouTube!
It is recommended to buy a saw blade with more teeth than the supplied saw blade. For precision work, one with more teeth is really needed.
Bjorn Ruysen
22 January 2018
Automatically translated from Dutch
Very decent machine, I came from a cheap DIY table saw and comparing it is like comparing apples and oranges. This is a very different class. Perfect for fine work, but also for sawing thicker wood. Tests in dik bankirai and the like went very smoothly. I have already made a saw carriage and the guides are very consistent and parallel, so also top.
Jef V.N.
28 February 2017
Automatically translated from Dutch
Good stuff, lovely to work with. The miter gauge does not slide stably through the intended slot... it has a little slack that is not adjustable. However, you can find them separately on the well-known Chinese sites for a few knots and they have an easy-to-use degree setting and have no play.
Chris Vos
8 July 2018
Automatically translated from Dutch
Product number | 168437 | |
|---|---|---|
Manufacturer code | DW745-QS | |
Brand | DeWalt | |
Warranty | 2 years | |
Processing of your defect | Carry-in warranty |
Speed | 3800 rpm | |
|---|---|---|
Laser guide | ||
Connection for vacuum | ||
Type of dust extraction | Connection for vacuum | |
Type of saw blade | Circular saw blades | |
Saw blade diameter | 250 mm | |
Diameter arbor hole | 30 mm | |
Number of teeth (numerical) | 24 | |
Saw blade thickness (numerical) | 3 mm | |
Tiltable saw head | Tiltable to one side | |
Maximum cutting depth 45° (slant) | 57 mm | |
Maximum saw blade incline left | 45 ° | |
Maximum cutting depth 90° (straight) | 77 mm | |
Including underframe | ||
Table extension | ||
Including push stick | ||
Including parallel guide | ||
Including miter guide | ||
Worktop standard length | 63 cm | |
Worktop standard width | 57 cm | |
Suitable for (surface) | Hard wood , MDF, Plastics, Wood | |
Type of DIYer | Professional |
Power supply type | Power grid | |
|---|---|---|
Cable length | 2 m | |
Connection voltage | 220 - 240 V |
Weight | 22 kg |
|---|
