Elgato Thunderbolt 3 Mini Dock
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our dock for laptops expert

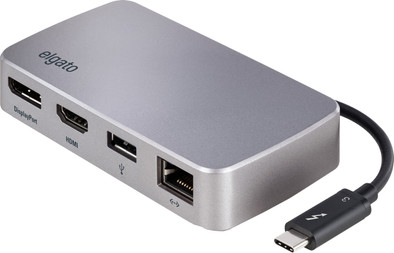

With the compact Elgato Thunderbolt 3 Mini Dock in your bag you can be sure that you connect your Macbook or Ultrabook to a complete workplace via a Thunderbolt 3.0. You then have a DisplayPort and HDMI port, so you can connect up to 2 4K screens (at 60 Hz) at the same time. You also have a usb 3.0 port (usb a) to connect peripherals such as an external keyboard. Poor WiFi connection is also not a problem, because via the Gigabit Ethernet port you can also connect your ultrabook to a fast wired network. Ready? Then the 12 cm long cable simply disappears into the bottom plate of the mini dock.
Note: this docking station is suitable for MacBooks, Ultrabooks, Chromebooks and other laptops with a Thunderbolt 3.0 usb c connection. This can be recognized by the lightning symbol at the gate. If in doubt, consult the manual for your laptop.
Connections (4x):
Extra functionalities docking station | Charge phone via docking station, Connect wired network | |
|---|---|---|
Type of main connector | USB-C | |
Number of connectable monitors | 2 | |
Type of USB port | Standard USB-A, USB-C | |
Cable length | 12 cm |
5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0
Product number | 827100 | |
|---|---|---|
Manufacturer code | 10DAB9901 | |
Brand | Elgato | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Made for laptop models | Apple MacBook, Chromebook, Microsoft Surface, Windows laptop |
|---|
Laptop docking station suitable for | Connect 1 monitor, Connect 2 monitors and a Chromebook, Connect 2 monitors and a Windows laptop | |
|---|---|---|
Extra functionalities docking station | Charge phone via docking station, Connect wired network | |
Type of main connector | USB-C | |
Supported video technology on Docking Station | Thunderbolt 3 | |
Number of USB ports | 1 | |
USB function | Charging an external device, Data transfer, Device connection, Play media, Software updates | |
Type of USB port | Standard USB-A, USB-C | |
Number of female standard USB-A ports | 1 | |
Female standard USB-A port version | 3.0 | |
Number of HDMI connectors | 1 | |
Female HDMI Type A port version | 1.4 | |
Number of Ethernet ports | 1 | |
Ethernet speed | Gigabit Ethernet (1000Mbps) | |
Type of DisplayPort connector | standard DisplayPort | |
Number of Female Standard DisplayPort 1.2 ports | 1 | |
Version Female Standard DisplayPort port | 1.2 | |
Memory card reader | ||
Number of connectable monitors | 2 | |
Maximum image resolution 1 monitor | 4K (3840x2160) | |
Maximum refresh rate 1 monitor | 60 Hz | |
Maximum image resolution 2 monitors | 4K (3840x2160) | |
Maximum refresh rate of 2 monitors | 60 Hz |
Cable length | 12 cm | |
|---|---|---|
Color | Silver | |
Height | 10,5 cm | |
Width | 5,7 cm | |
Depth | 2,5 cm | |
Weight | 0,125 kg |
