Makita DLS714NZ (without battery) + Underframe

Name: Makita DLS714NZ (without battery) + Underframe
Brand: Makita
SKU: 950213
Price: 912 EUR
Availability: OutOfStock

Select an option

Choose your radial arm saw:

190 mm

Yes

Choose your radial arm saw

Including underframe

Yes

Be the first to know when this product is in stock

Product information
Accessories
Specifications

Product information

Pros and cons

According to our radial arm saw expert

You can work at a comfortable height thanks to the included underframe.
The radial arm saw is a part of the Makita LXT 18V battery platform, so you can also use batteries from this platform on this tool.
Thanks to the table extension, your saw reach is larger and large workpieces remain in place.
You don't get a battery, so you can't get started right away.

Description

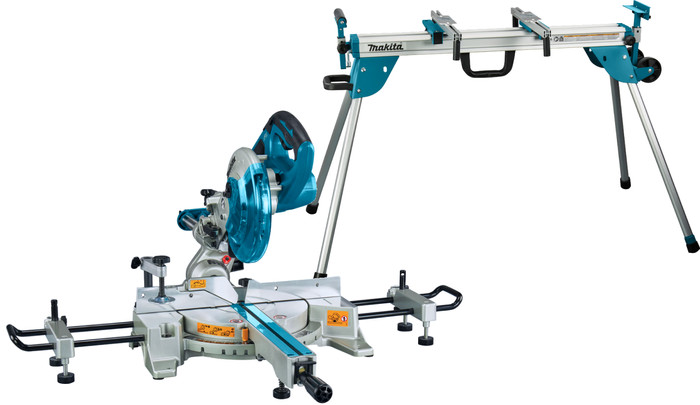

This set includes a Makita DLS714NZ (without battery) radial arm saw, as well as a DEBWST06 underframe. This way, you always work at a pleasant 85cm working height. You can saw boards of up to 300mm wide and 52mm deep. Even if you saw at an angle (miter), you can saw up to 52mm high. Tilt the saw head to the left or right and easily make all miter cuts. There's no need to turn your workpiece. Because the underframe slides out, you can saw workpieces up to 255cm long. You can also effortlessly place up to 225kg on it. Is the surface uneven? Adjust the height of the adjustable feet so the DLS714NZ (without battery) + Underframe still stands firmly.

Tips for using this product

This is what you get

Makita DLS714NZ (without battery)

Manual(2.34 MB)
Dust bag
Table extension holder
Adjustment angle radial arm saw/plane
Hex key 5mm
Bar clamp vertical
Table extension
Saw blade wood

Makita DEBWST06

Manual(3.28 MB)

Contents of this set

This set has been composed by our expert.

Makita DLS714NZ (without battery)

Makita DEBWST06

Show all specifications

Reviews

Rating

5 stars

4 stars

3 stars

2 stars

1 star

Makita extra warranty

Register your Makita tool within 4 weeks after purchase and receive 2 years of extra machine warranty on top of the standard warranty from Makita. This means you'll have a total warranty of 3 years on your Makita product. View the promotional Terms and Conditions (PDF) for more information.

Specifications

Product

Product
	Product number	948307
	Manufacturer code	DLS714NZ
	Brand	Makita
	Warranty	2 years
	Processing of your defect	Via Coolblue

Radial arm saw functions

Radial arm saw functions
	Speed	5700 rpm
	Pull function
	Table extension
	Softstart

Miter functions

Miter functions
	Tiltable saw head	Tiltable to both sides
	Maximum saw blade incline left	45 °
	Maximum saw blade incline right	5 °
	Maximum cutting depth 45° (slant)	52 mm
	Maximum cutting width 45° (slant)	212 mm

Cutting line indication

Cutting line indication
	Conductor
	Cutting line indication	None
	Power source conductor	Via battery

Dust extraction

Dust extraction
	Connection for vacuum
	Type of dust extraction	Connection for vacuum , Dust bag/cup

Power supply

Power supply
	Power supply type	Rechargeable battery
	Battery / battery voltage	36 V
	Required battery/battery voltage (device)	36 V
	Required batter/battery technology (device)	Lithium-ion
	Type of battery	Specific battery
	Battery platform	Makita LXT 18V
	Battery included
	Number of batteries included	0

Saw blade properties

Saw blade properties
	Includes saw blade
	Suitable for (surface)	Hard wood , Laminate, MDF, Metal, Wood
	Number of teeth (numerical)	24
	Saw blade thickness (numerical)	1,6 mm

Physical properties

Physical properties
Height	44,5 cm
Depth	65,5 cm
Width	43 cm

Product

Product
	Product number	948651
	Manufacturer code	DEBWST06
	Brand	Makita
	Warranty	2 years
	Processing of your defect	Via Coolblue

Properties

Properties
Underframe with wheels
Table top working height	85 cm
Worktop standard length	255 cm
Worktop standard width	75 cm
Carrying capacity	225 kg
Weight	16 kg
