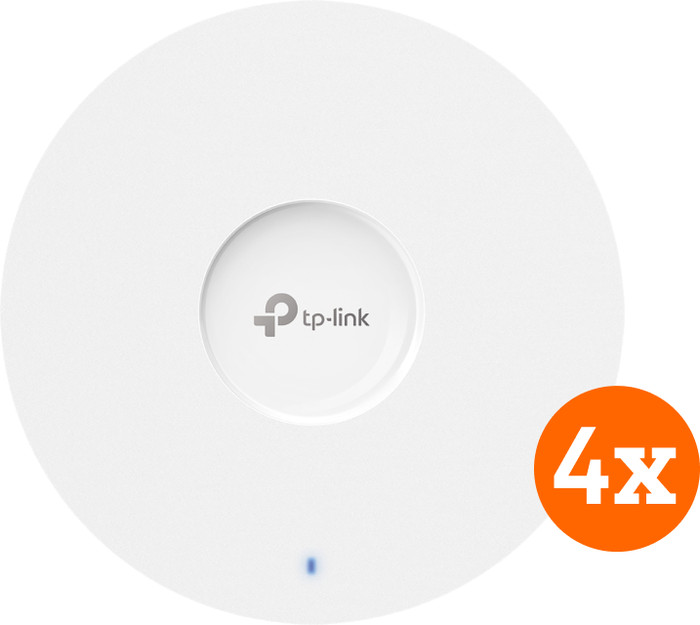

TP-Link Omada EAP683 UR 4-pack

Select an option

Product information
Accessories
Highlighted
Specifications

Product information

Pros and cons

According to our access point expert

The access points support WiFi 6, so you can set up a more stable connection and better coverage.
You can power the access points via a network cable, so you don't need a socket.
For a large range, you can connect multiple access points.
In order to take advantage of all the benefits of WiFi 6, you need suitable devices.
For even faster connections in large companies, choose WiFi 6E or WiFi 7.

Description

With the TP-Link Omada EAP683 UR 4-pack, you can enjoy a stable WiFi network in a small commercial property or a larger private home. Thanks to WiFi 6, you provide a more stable and faster connection than with WiFi 5. The EAP683 UR can reach WiFi speeds of 4804Mbps on the 5GHz band and 1148 on the 2.4GHz band. This allows you to have a video call with more than 200 colleagues at the same time. For a network that covers your entire company, you can easily add extra access points. You can do this with 1 cable, because the power and internet traffic go through the same cable. You can control the access points via the cloud. That way, you can easily add extra points and set the network to your preferences. You can make a separate network for employees and guests, for example.

Tips for using this product

This is what you get

Manual
Mounting materials

Contents of this set

This set has been composed by our expert.

4x TP-Link Omada EAP683 UR

Show all specifications

Highlighted

The WiFi solution for your living situation
We'll help you find a solution for your WiFi problem in 2 steps here.

Reviews

Rating

5 stars

4 stars

3 stars

2 stars

1 star

Specifications

Product

Product
	Product number	958749
	Manufacturer code	EAP683 UR
	Brand	TP-Link
	Warranty	10 years
	Processing of your defect	At your home

Access point options

Access point options
	Speed class	High-end
	Number of access points	1
	Quality of Service (QoS)
	Suitable for IPv6
	Guest network
	Bridge option
	Repeater function
	IGMP Snooping
	Beamforming
	Seamless roaming
	Can be expanded with extra stations
	On/off switch
	Mounting possible
	Mounting surface	Ceiling, Desk, Floor, Wall, Wall socket

Wireless options

Wireless options
	Fastest WiFi standard	Wireless AX (WiFi 6)
	WLAN security	802.1X, WPA, WPA2
	Number of WiFi antennas	8
	Frequency bands	Simultaneous quad-band
	WiFi speed	AX6000
	5GHz band speed	4804 Mbit/s
	2.4GHz band speed	1148 Mbit/s
	External antennas
	Signal transmission	Omnidirectional
	Antenna connection type	RP-SMA Female
	Replaceable WLAN antennas
	MAC address filter
	MIMO
	MU-MIMMO

Wired options

Wired options
	Ethernet speed	2.5Gb Ethernet (2500Mbps)
	Number of Ethernet ports	1
	WAN ports	1
	PoE support
	Type of PoE	802.3af (PoE), 802.3at (PoE+)

Physical properties

Physical properties
	Type of access point	Indoors
	Material	Plastic
	Height	32,5 cm
	Width	22 cm
	Depth	22 cm
	Color	White

This is the one

TP-Link Omada EAP683 UR 4-pack
