This is the one

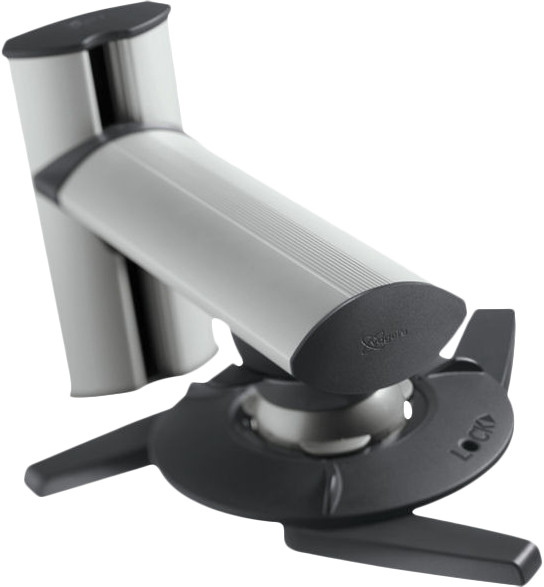

Vogel's EPW 6565

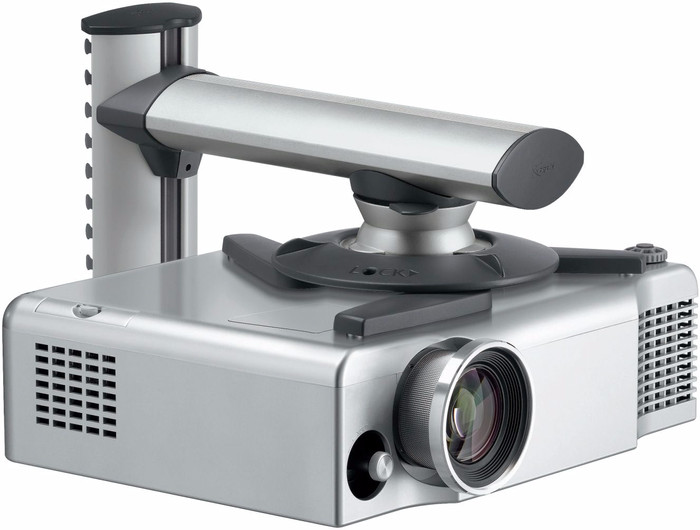

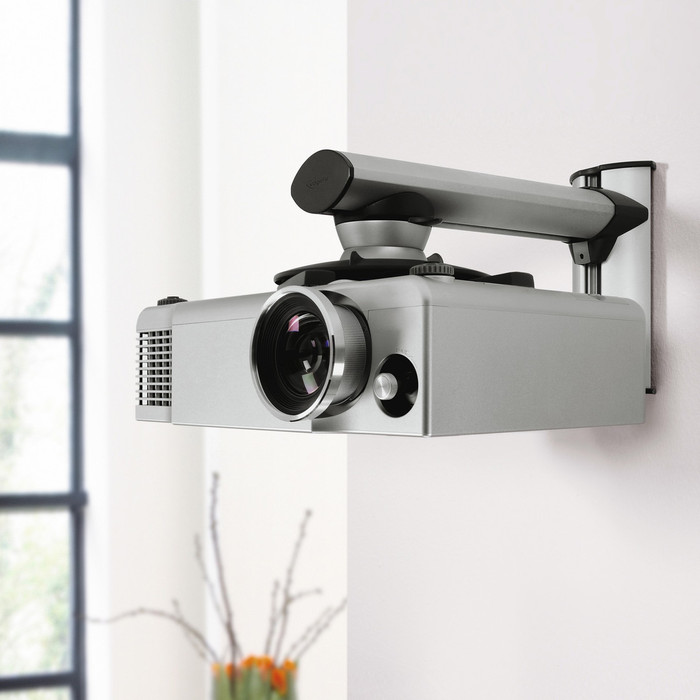

Use the Vogels EPW 6565 to mount any projector up to 10kg to any wall. You can hide the cables from view, but you can also guide them upwards, at any desired height. You can do all of this thanks to the patented AdvanCISTM cable management system.

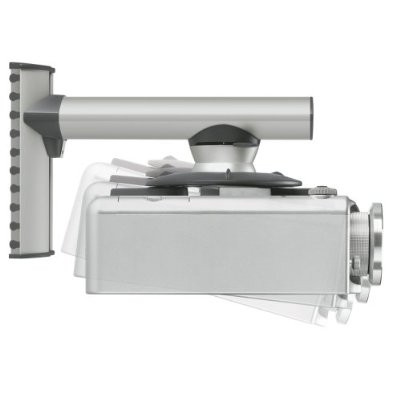

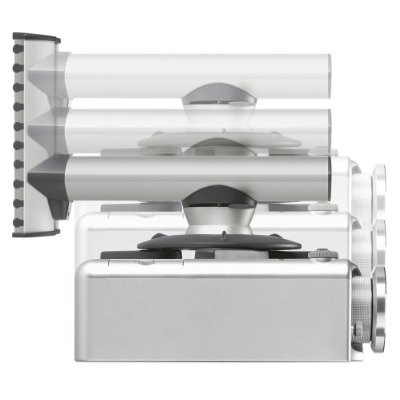

Thanks to the Adjust & Secure function, you can mount the projector in any desired position. You don't even necessarily have to mount it on the opposite wall! The horizontal arm can move in practically any direction. Because you can mount the projector both above and below the arm, you can mount the projector at the height you want; on the ceiling or low on the ground!
5 stars
4
4 stars
8
3 stars
1
2 stars
1
1 star
0
Easy and quick to assemble. Nice and clean view. And last but not least, CoolBlue's fast and good service.
Jozef Buttiens
15 March 2016
Automatically translated from Dutch
Because I didn't want to damage my wooden ceiling, I chose this bracket that I mounted in the back of my beamer room. If you want to hang a beamer against a wall, this bracket is about the only solution, other brackets are for ceiling mounting. How lucky that it is a solid and sturdy model! For a "bracket" it is a bit of money, ceiling brackets are a lot cheaper. You can't argue about taste, but I think the bracket is quite beautiful and elegant, fitting in any contemporary interior.
When mounting, you should carefully consult the manual of your projector about the bolts to be used for mounting. Included with the bracket are M3, M4 and M5 bolts for screwing into the beamer, each 8mm long. They were too short for my optoma HD26, I used an M4x12 bolt. Less fun if you only find out when the brico has just closed of course....
joris marien
25 May 2016
Automatically translated from Dutch
I was looking for a wall bracket for my Benq projector, which is not too conspicuous, which hangs cleanly and firmly on the wall, and which I could rely on. The assembly is explained fairly simply, all accessories and assembly supplies are included, and if you read what it says, it is assembled and installed in fifteen minutes.
The flexible but fixable 'head' makes aiming and 'straightening' the image super easy: you mount the beamer on the sphere, align the image, and then simply tighten the clamp with the lever.
The bracket fits into the Vogel system for wall mounting, so you can add the other modules to it, so that the cables can be neatly hidden between the different parts.
Bram Kortleven
18 October 2016
Automatically translated from Dutch
Product number | 98757 | |
|---|---|---|
Manufacturer code | 8023654 | |
Brand | Vogel's | |
Warranty | 5 years | |
Processing of your defect | Via Coolblue |
Mounting surface | Wall | |
|---|---|---|
Mount flexibility | Swivels and tilts | |
Maximum weight | 10 kg | |
Cable management | ||
Spirit level included |
Mount flexibility | Swivels and tilts | |
|---|---|---|
Swivel | 360 ° | |
Tilts | 20 ° | |
Adjustable in height |

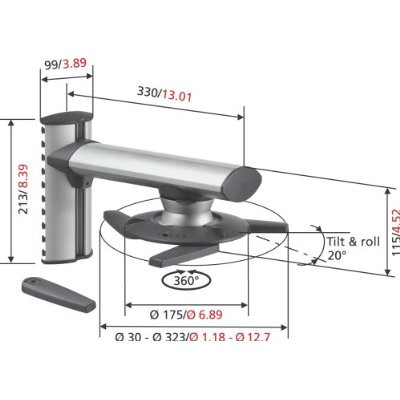

Weight | 2,11 kg |
|---|---|
Depth | 330 mm |
Width | 323 mm |
Height | 213 mm |
Color | Gray |
Material | Metal |
