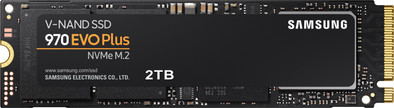

Samsung 970 EVO PLUS M.2 2TB
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
According to our solid state drive (SSD) expert
Note: this M.2 SSD has a PCI Express (NVMe) interface and will only work if your system supports PCIe/NVMe. Make sure to check this in the manual of your laptop or motherboard.
The Samsung 970 Evo PLUS 2TB is an internal NVMe SSD, suitable for very demanding users. With extremely fast read speeds of 3,500MB/s, and write speeds of 3,300MB/s, you can process data in a few seconds. With this SSD, your laptop will boot in less than 15 seconds. On top of that, this SSD will last for years, thanks to a TBW of 1200. The 256-bit AES encryption ensures the protection of your data. You can update the SSD's firmware and manage its performance through the Samsung Magician software.
This SSD is 80 millimeters long. Want to use this M.2 internal SSD? Make sure to check whether your motherboard supports this length. If not, the SSD won't fit and you won't be able to install it.
Total storage capacity | 2 TB | |
|---|---|---|
Type of SSD | M.2 NVMe (PCIe) | |
Maximum read speed | 3500 MB/s | |
Maximum write speed | 3300 MB/s | |
PCIe version | PCIe 3.0 | |
With heatsink | ||
Formaat M.2 SSD | 22x80 |
5 stars
72
4 stars
6
3 stars
3
2 stars
0
1 star
0
Installation ease
Reliability
Speed
Price-quality ratio
For that price there may be screws to install on the motherboard, but nothing. This cannot be bypassed. Because if you no longer have them yourself, then no installation is possible. Shame
Freddy Desmet
9 November 2020
Automatically translated from Dutch
After 6 months in raid (QNAP 264) one of them is broken and needs to be replaced
Jos
15 April 2024
Automatically translated from Dutch
Ideal extension of my Acer Nitro
JackyStaal
5 June 2023
Automatically translated from Dutch
Product number | 825618 | |
|---|---|---|
Manufacturer code | MZ-V7S2T0BW | |
Brand | Samsung | |
Warranty | 5 years | |
Processing of your defect | Via Coolblue |
Total storage capacity | 2 TB | |
|---|---|---|
Type of SSD | M.2 NVMe (PCIe) | |
M.2 PCIe version | 3.0 | |
SSD-controller | Samsung | |
Memory type (SSD) | Multi Level Cell (MLC) |
M.2 SSD connector type | M | |
|---|---|---|
Formaat M.2 SSD | 22x80 | |
Compatible with product type | Desktop, Laptop | |
With heatsink |
Depth | 80 mm | |
|---|---|---|
Height | 2 mm | |
Width | 22 mm | |
Color | Black | |
Year introduced | 2019 |
Cache memory | 2000 MB | |
|---|---|---|
Maximum read speed | 3500 MB/s | |
Maximum write speed | 3300 MB/s | |
Output operations per second (IOPS) | 620000 | |
Input operations per second (IOPS) | 560000 | |
Mean Time Between Failure (MTBF) | 1500000 h |
Data encryption | Hardware encryption |
|---|
Average power consumption | 6 W | |
|---|---|---|
Maximum power consumption | 9 W | |
Stationary power consumption | 0,03 W | |
Energy-efficient | ||
Durability class | Mid-range | |
Minimum temperature | 0 °C | |
Maximum temperature | 70 °C |
