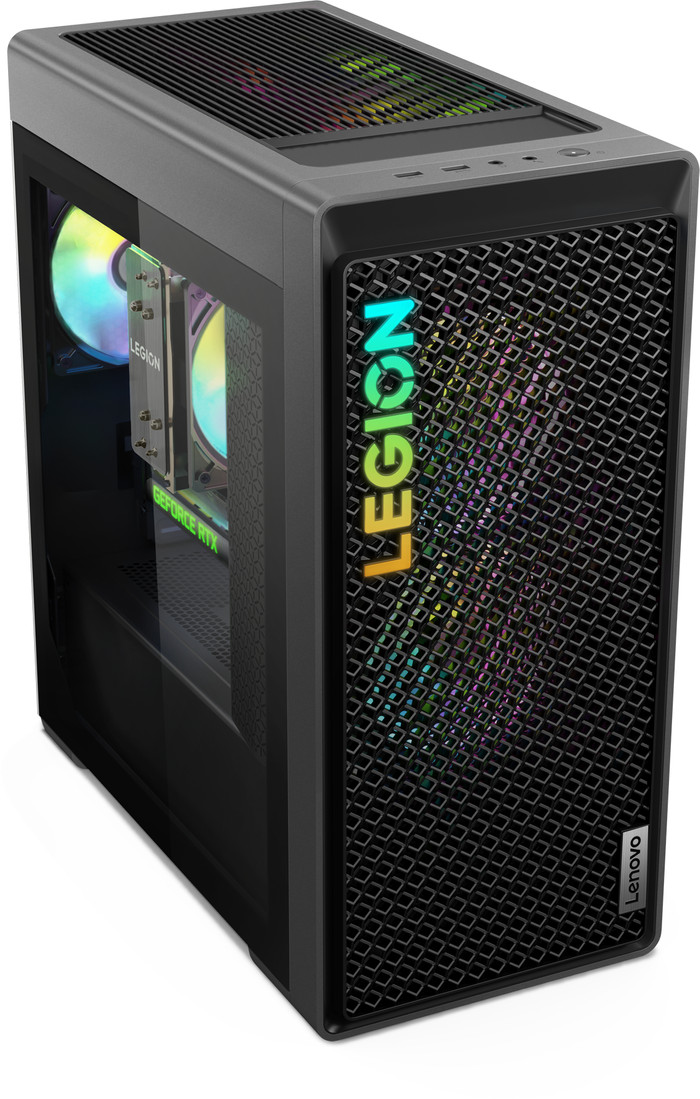

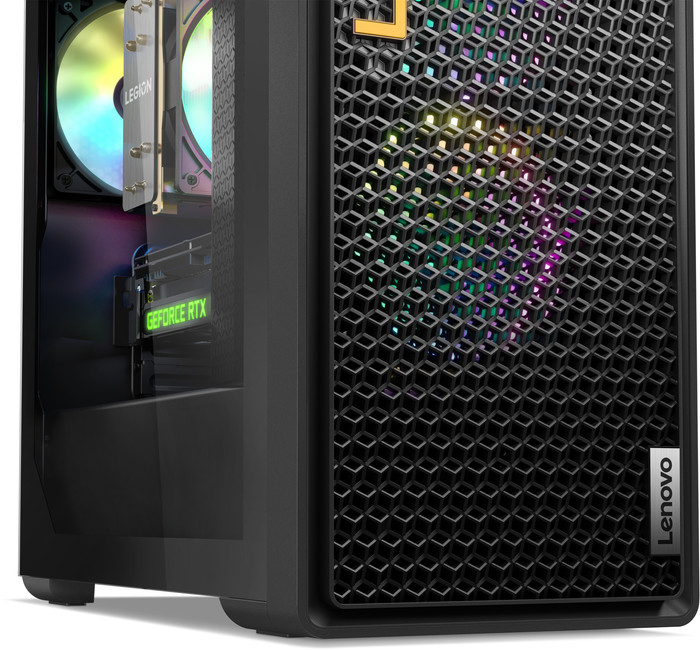

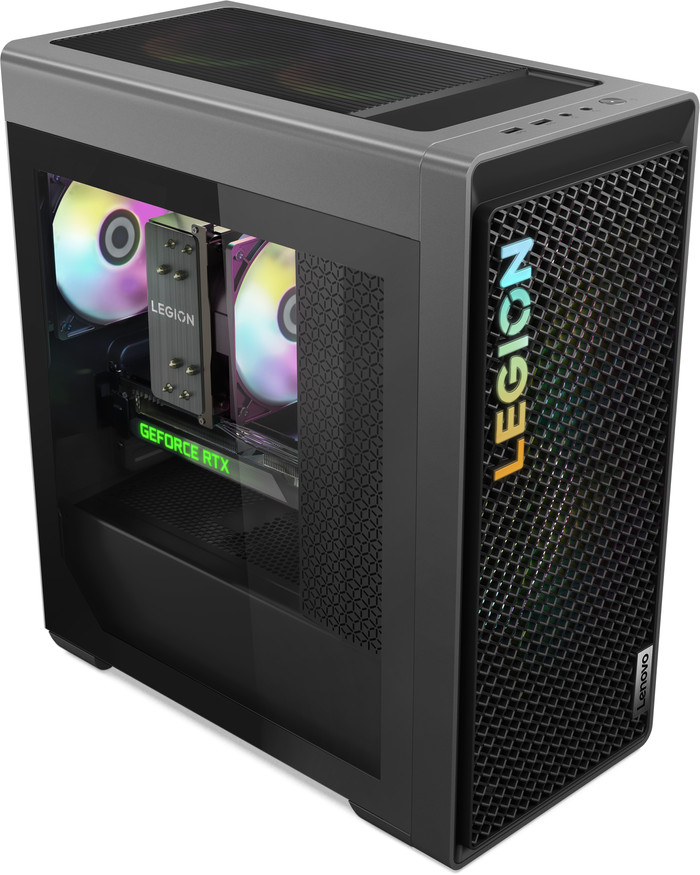

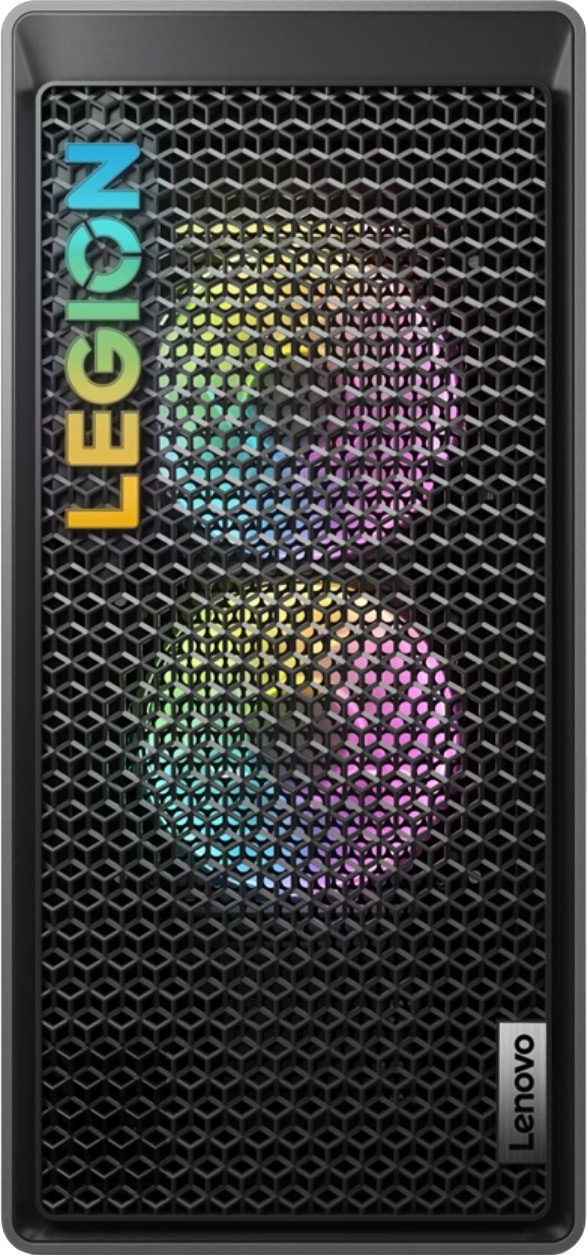

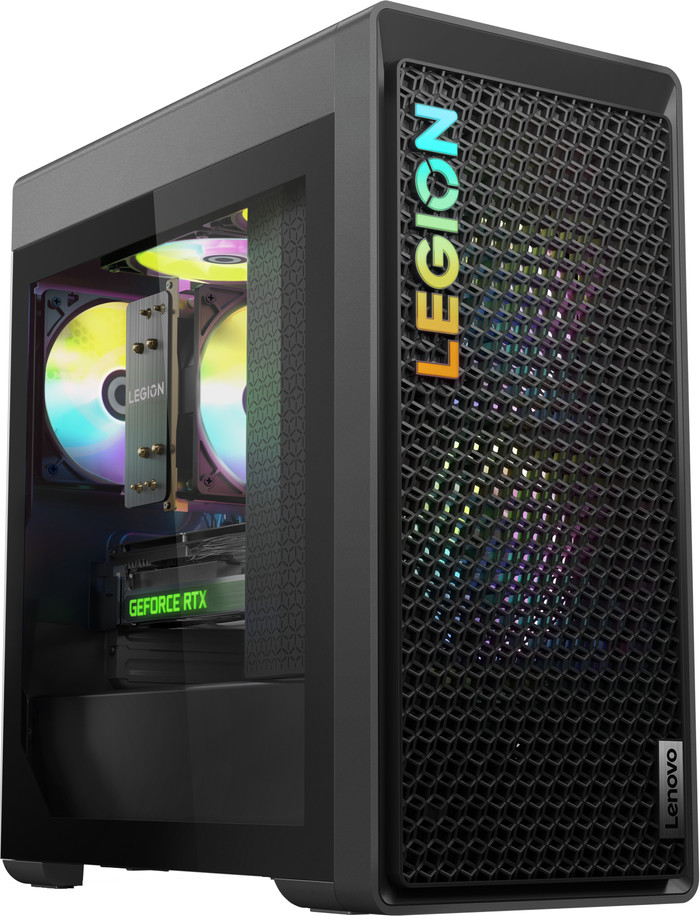

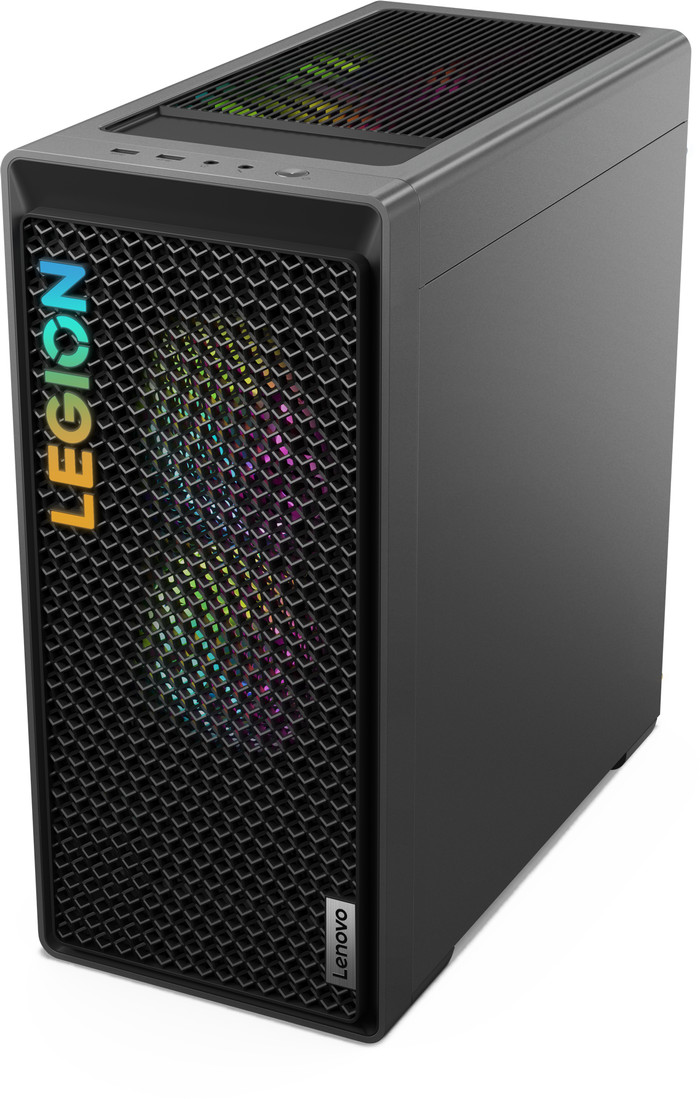

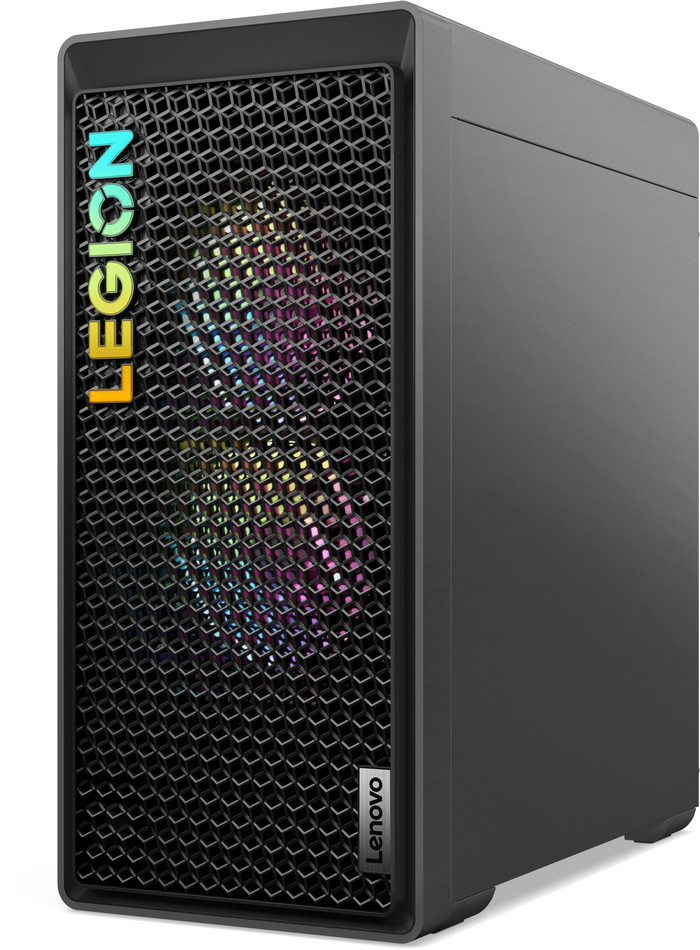

Lenovo Legion T5 26ARA8 90UY00CRMH
Never available again
View alternatives in the sidebar
View alternatives in the sidebar
Product number | 958750 | |
|---|---|---|
Manufacturer code | 90UY00CRMH | |
Brand | Lenovo | |
Warranty | 2 years | |
Processing of your defect | Via Coolblue |
Processor | AMD Ryzen 7 | |
|---|---|---|
Processor number | 7700X | |
Processor cores | Octa-Core (8) | |
Clock speed | 4,5 GHz | |
Turbo speed | 5,4 GHz | |
Cache memory | 32 MB |
Internal RAM | 32 GB | |
|---|---|---|
Memory composition | 2x 16GB | |
Total number of RAM slots | 4 | |
Memory slot 1 | 16 GB | |
Memory slot 2 | 16 GB | |
Memory slot 3 | 0 GB | |
Memory speed | 5600 MHz |
Total storage capacity | 1 TB | |
|---|---|---|
Storage type | SSD | |
SSD storage capacity | 1000 GB | |
Number of SSDs | 1 | |
Type of SSD | M.2 NVMe (PCIe) |
Video card | NVIDIA GeForce RTX 4070 Super | |
|---|---|---|
Type of video card | Dedicated | |
Video card RAM | 12 GB |
Motherboard chipset | AMD B650 |
|---|
Operating system | Windows | |
|---|---|---|
Windows OS version | Windows 11 Home | |
Operating system language | Multiple languages can be configured |
Including screen |
|---|
Form factor (IT casing) | Desktop PC | |
|---|---|---|
Type of cooling | Fan | |
RGB lighting | ||
Hardened glass | ||
Height | 42,59 cm | |
Width | 20,5 cm | |
Depth | 39,69 cm | |
Weight | 14 kg | |
Material | Metal, Plastic | |
Metal type | Aluminum | |
Color | Gray | |
Finish | Matte and glossy | |
VESA mount option |
Built-in WiFi | ||
|---|---|---|
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.1 |

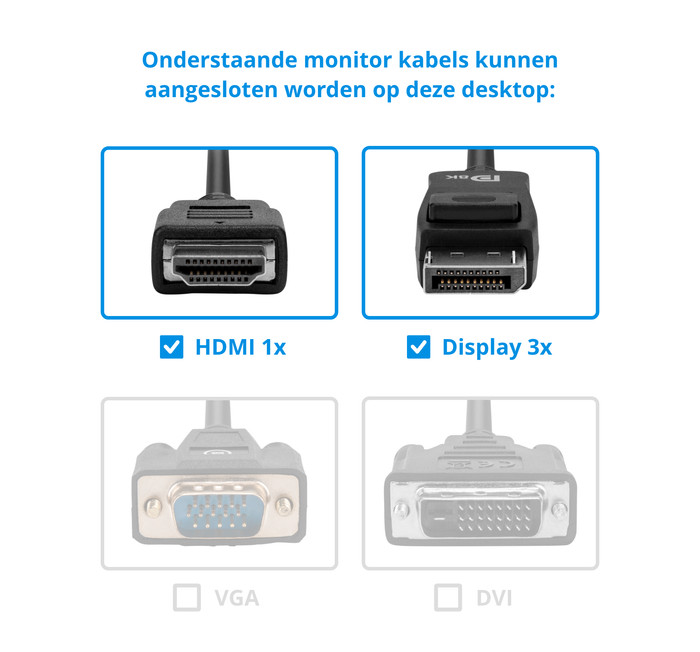

Number of monitor connectors | 4 | |
|---|---|---|
Total amount HDMI connectors desktop back | 1 | |
Number of HDMI 2.1 ports desktop back | 1 | |
Total number DisplayPorts desktop back | 3 | |
Number of DisplayPorts 1.4 desktop back | 3 |
Total amount USB-A ports desktop back | 6 | |
|---|---|---|
Amount USB-A 2.0 ports (480Mbps) desktop back | 2 | |
Number of USB-A 3.1 ports (10Gbps) desktop back | 2 | |
Amount USB-A 3.0 ports (5Gbps) desktop back | 2 | |
Total amount USB-C ports desktop back | 1 | |
Number of USB-C 3.1 connectors (10Gbps) desktop back | 1 | |
Network connector | ||
Ethernet speed | 2.5Gb Ethernet (2500Mbps) | |
Number of Ethernet ports | 1 |
Total amount other USB-A ports desktop | 2 | |
|---|---|---|
Amount other USB-A 3.0 ports (5Gbps) desktop | 2 | |
Total number of other headphone connectors desktop | 1 | |
Total number of other microphone connectors desktop | 1 |
Power supply type | Power grid | |
|---|---|---|
Power | 850 W |
TPM (Trusted platform module) | ||
|---|---|---|
TPM type | Firmware TPM |
Number of expandable PCIe x1 slots | 0 | |
|---|---|---|
Number of expandable PCIe x8 slots | 0 | |
Number of expandable PCIe x16 slots | 1 | |
Amount expandable M.2 slots | 4 | |
Length M.2 SSD | 80mm |
Optical drive available |
|---|
Webcam |
|---|
Built-in speakers |
|---|
Speed class desktops | Best | |
|---|---|---|
ISV certification | ||
Usage situation desktop | Gaming, Photo editing, Spreadsheets and presentations, Video editing |
Manufacturer's warranty |
|---|
Processor | AMD Ryzen 7 | |
|---|---|---|
Processor number | 7700X | |
Internal RAM | 32 GB | |
Video card | NVIDIA GeForce RTX 4070 Super | |
Total storage capacity | 1 TB | |
Usage situation desktop | Gaming, Photo editing, Spreadsheets and presentations, Video editing |
According to our desktop expert
You can play medium demanding games at 60 fps and stream your gameplay in Full HD with the RTX 4070 Super video card, the Ryzen 7 processor, and 32GB RAM.
With 1TB, you have more than enough storage space for all your games.
You can easily expand this desktop with extra storage, which makes it future-proof.
For game design and 3D animation in demanding 3D software, you need at least an i9 or Ryzen 9 processor.
We recommend at least an RTX 4090 or RX 6900 video card if you want to play the most demanding games.
With the Lenovo Legion T5 26ARA8 90UY00CRMH, you can play your favorite medium demanding games and stream your gameplay in Full HD. Thanks to the NVIDIA GeForce RTX 4070 Super video card, you can do this smoothly at a higher resolution than with the regular RTX 4070. With the 7000 series AMD Ryzen 7 processor and 32GB DDR5 RAM, you can also easily work in multiple demanding programs at the same time. You can store all your games and files on the 1TB M.2 SSD. Need more storage for expansion package and mods? The T5 has enough free slots for extra SSDs and HDDs. This gaming PC also has enough USB ports for connecting all your gaming accessories.
Receive an email with a personal voucher code for 1 free year of Norton 360 Deluxe antivirus 24 hours after purchase, worth € 94.99.
5 stars
3
4 stars
4
3 stars
1
2 stars
0
1 star
0
I wanted something that was good enough to play current games smoothly, but I didn't want a noisemaker. So the temperature of the processor had to be kept low. A lower clock speed or whatever makes the processor less high in temperature when it is heavily loaded, which happens quickly. Those milliseconds won't make it, as long as the games can be played smoothly. This also pushes the price down in terms of cooling ventilation system that is needed, air or water cooled. The clock speed can remain high because it never gets too hot. 81°C so far. Electricity consumption is also lower. I think a good balance between power and consumption..

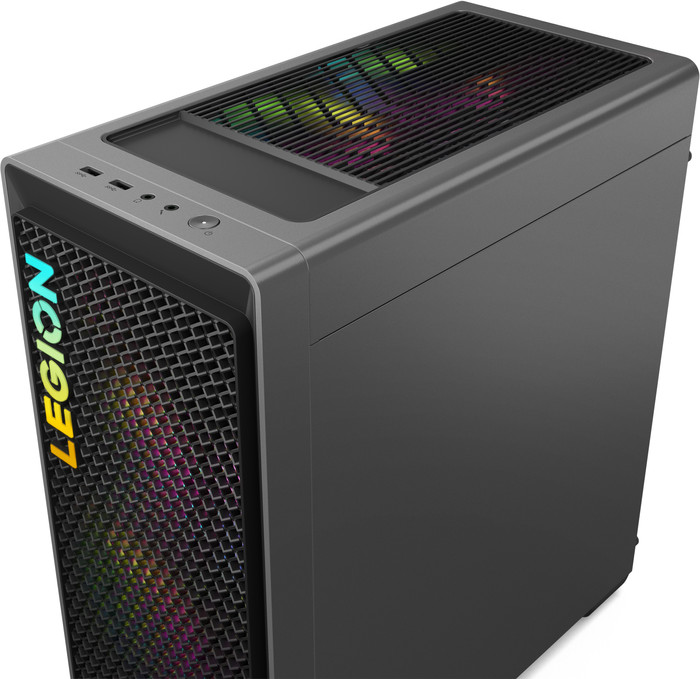

The only downside that worried me was probably the lack of USB ports at the front and the headphones at the top. It is on the cabinet next to me, and the wires of the mouse and headphones were dangling in front of my screen. I installed an external USB box and bought a wireless headset and the problem is solved.
Jean-Claude
19 August 2024
Automatically translated from Nederlands
As a former PC gamer and after years of console gaming, I finally bought a GAME PC. I didn't really feel like building one myself and this Lenovo turned out to be a very complete system and also on sale, which made building one myself really too expensive.
I've been using the PC for a few months now and I'm generally very happy with it. I play in combination with a new QD-Oled Ultrawide with 240Hz support.
It's fast and plays almost everything on ultra settings. The latest games (like Indiana Jones and the Great Circle) at 90+ FPS and previous games at 120+ fps (most much more). (Full Ray-tracing NOT possible, only basic RT!!!)
The PC is equipped with a 1TB M.2 SSD, which fills up quite quickly. When searching (online) for expansion options, it's hard to find the right information. By unscrewing it and removing the video card you will find 2 extra M.2 SSD slots (PCIe 4.0).
I used one of the slots for expansion with a Samsung 2TB 990Pro with heatsink (which fits perfectly under the video card). However, the "Samsung Magician" software does not find the SSD... CrystalSiskInfo offers a solution and does see it... CrytsalDiskMark can also test it for speed.
When testing, I only achieved half of the advertised speed. After thorough research, it appears in the small print that it concerns a PCIe-4.0x4 slots, but these only appear to run on PCIe-4.0x2 due to limitations in the chipset (!). That should have been mentioned in the product description of the Lenovo!!! From a system like this and in the current time you simply expect to be able to use full support and the full speed on this component!!!
Expanding working memory: Expanding the working memory also appears to be impossible. Where there is excellent DDR5 memory built in, expansion with exactly the same modules appears to be impossible. This is because these modules are simply not available separately anywhere. If you want to expand the memory, you are dependent on replacing it completely with new modules of the same brand/series. This is because it is advised not to use modules from different brands and series next to each other because this is prone to failure.
The Warranty Period. "Lenovo Vantage" is installed on the Lenovo, which can be used to find a lot, including the warranty period. This turned out to have already started in April 2024, while I only purchased it in December 2024 and started it up for the first time. So you have to request a correction for this from Lenovo yourself... This takes about 2 days, but it does have to be corrected.
Furthermore, it is a fast and complete system that I can use well for the time being. Games run smoothly and I enjoy them a lot But after my own experiences, you quickly find out why the system seems very interesting as a pre-build, but can still have serious shortcomings that you can discover (much) later.
Roy
2 March 2025
Automatically translated from Nederlands
A fantastically powerful computer! If you often work with Adobe programs such as Photoshop, InDesign, Illustrator, After Effects, this is 100% recommended. Finally, this is surprisingly pleasant due to the visual lighting of the device!
Bruno
5 April 2025
Automatically translated from Nederlands
