Bosch PVS775HC1E
Our choice for an extra wide 56cm cutout cooktop with extra space for your pans.
Choose your cooktop
Extra wide - flexible cooking zone - PerfectFry
Insure your Cooktop
Receive more coverage in case of damage than with your standard warranty. Coolblue takes care of everything: from taking out the insurance to repairs. Is a repair not possible? You receive the purchase price as CoolblueCredit.
What am I insured for?
- Fall and impact damage
- Water damage
- Manufacturing defects outside the warranty
What am I not insured for?
- Damage you deliberately cause
- Damage that doesn't affect the product functioning (such as scratches)
- Damage due to gross negligence
XCover insurace
XCover is allowed to arrange and process insurances on behalf of the insurer. The insurances are governed by Belgium law. If you have a complaint, you can contact the or our customer service.
How do I insure my Cooktop?
First, add your Cooktop to your shopping cart. On the next page, choose the Protection Plan below. You always have a 30-day return window and pay no deductible in case of damage.
XCover Protection without theft cover
- 5-year advance payment75,- one-time payment (15,- per year)
- 4-year advance payment55,- one-time payment (13,75 per year)
The insurance can be canceled every year, even if you have paid in advance. If you cancel earlier, you will receive a refund for the overpaid amount.
Specifications
Product
Product number | 946162 | |
|---|---|---|
Manufacturer code | PVS775HC1E | |
Brand | Bosch | |
Warranty | 2 years | |
Processing of your defect | At your home |
General features
Appliance placement | Built-in | |
|---|---|---|
Cooktop heating | Induction | |
Width | 71 cm | |
Height | 5,1 cm | |
Depth | 52,7 cm | |
Weight | 9,4 kg | |
Color | Black | |
Finish cooktops | Gloss | |
Cooking surface material | Glass | |
Cooktop frame | Raised edge | |
Frame material | Glass | |
Cover |

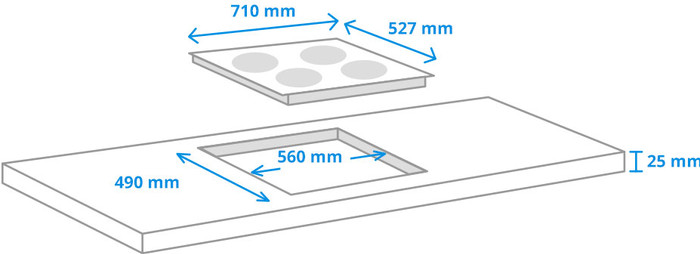

Installation dimensions
Standard cooktops cutout width | 56 cm | |
|---|---|---|
Minimum distance between the cutout and the wall (cooktops) | 5 cm | |
Built-in niche width | 56 cm |
Physical properties
Number of settings | 17 | |
|---|---|---|
Flexible cooking zone | ||
Number of flexible cooking zones | 1 | |
Boost function | ||
Max. power of the largest cooking zone | 3,7 kW | |
Keep-warm function | ||
Auto heat-up | ||
Auto shut-off in case of overflow | ||
Temperature control | ||
Pan recognition | ||
Pan size recognition | ||
Residual heat indicator | ||
Temperature setting | Settings | |
Preparation quality | Mid-range | |
Included by default | Installation kit, Manual, Power cord | |
Oven-controlled |
User-friendliness
Control options | Touch keys, Via application (smartphone/tablet) | |
|---|---|---|
Memory function | ||
Safety switch-off | ||
Child safety lock | ||
Overheating protection | ||
All-off button | ||
On/off indicator | ||
Brand-specific technologies | Bosch Home Connect, Bosch HoodControl, Bosch PerfectFry |
Electrics
Connector included | ||
|---|---|---|
Connection to number of phases in the Netherlands | 2 phases (Perilex connector) | |
Connection to number of phases in Germany | 2 phases (3680 - 7360W) | |
Minimum power supply | 6900 W | |
Location of electric connector | Right rear |
Cooking zone properties
Number of cooking zones | 4 | |
|---|---|---|
Cooking zone 1 | Expandable | |
Power output cooking zone 1 | 2,5 kW | |
Length cooking zone 1 | 19 cm | |
Width cooking zone 1 | 21 cm | |
Cooking zone 2 | Expandable | |
Power output cooking zone 2 | 2,5 kW | |
Length cooking zone 2 | 19 cm | |
Width cooking zone 2 | 21 cm | |
Cooking zone 3 | Standard | |
Power output cooking zone 3 | 1,6 kW | |
Diameter cooking zone 3 | 14,5 cm | |
Cooking zone 4 | Standard | |
Power output cooking zone 4 | 2 kW | |
Diameter cooking zone 4 | 18 cm |
